Yealink T46G

GENERAL INFORMATION
Yealink T46GThe T46G is a 6 line IP Phone from Yealink. It comes with a full color screen and HD audio support. This IP Phone is easy to configure, stable, and offers solid call quality.


RESOURCES
Websites:
Yealink T46G Product Page

Help / Support:
Yealink Support


Configuring the Yealink T46G
These instructions are based on Yealink T46G firmware version 28.72.0.1. If you are running a different software revision then some menus and settings may be different. In addition this set f instructions assumes you are starting from factory default settings, which obtains a dynamic IP address automatically from your router using DHCP. For information on configuring your T46G with a static IP address please refer to the T46G user manual.

Configuring the T46G is relatively straightforward. While there are many options available you only need to edit a few of them to get up and running.

We recommend that you read each step through in its entirety before performing the action indicated in the step.
STEP 1 Getting your T46G connected to your network
Connect your T46G to your router using the included Ethernet cable. Once that's completed, plug the AC adapter to your phone then the other end to an available power outlet. Note that some models of this device do not come with an AC adapter and instead draw power from the Ethernet cable. If your device is not powering on then please contact Yealink support.

STEP 2 Accessing your web configuration
Once you have plugged in your device please wait 60 seconds for unit to fully boot up.

Directly below the screen there should be 4 buttons; please select the button beneath "Menu", then press the same button again as it should already be highlighting the "Status" icon on the screen and say "Enter" above the button on the screen. You should now see several lines of information including the device's IP address which will be in the following format: "192.168.1.10". Note that the actual numbers will most likely be different.

On your computer open a web browser like Chrome, Firefox, Internet Explorer, or Safari, and enter the IP address that you see on your phones LCD screen in the address bar(the same location where you enter web addresses).

STEP 3 Logging in to the T46G

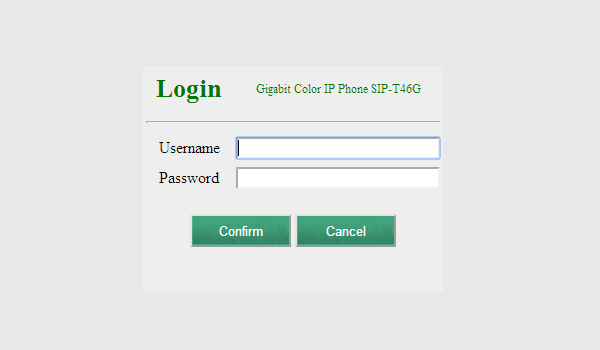

You should now see a page that looks like this:

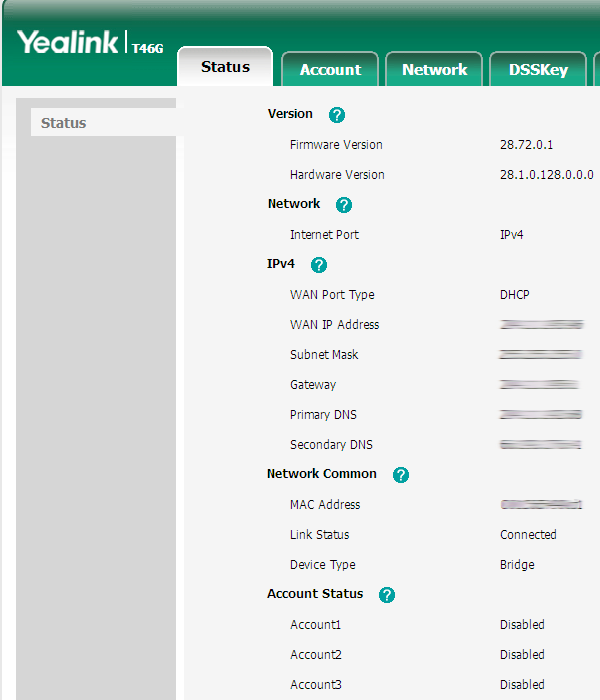

Enter the T46G's user name and password in to their respective fields. By default both the user name and password should be "admin" (without the quotes). Once you have logged in you should see a page that looks like the screen shot below:



STEP 4 Configuring your Callcentric account

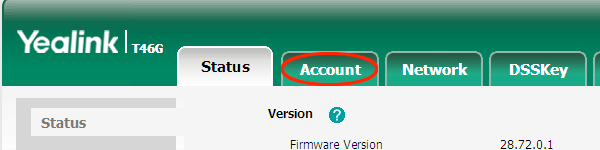

We will now configure one of the lines on the T46G to work with your Callcentric account. To begin, and assuming you are still on the Status page shown in the previous step, please click the "Account" link on the top of the page as highlighted below:



From there you should be brought to the Account 1 settings page. Once there make the following changes in your configuration:

SettingValue
Account Active:Enabled
Register Name:This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.

For example: 17770001234101 would register to extension 101 on account 17770001234.

You cannot register to your account using only the extension number.
User Name:This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.

For example: 17770001234101 would register to extension 101 on account 17770001234.

You cannot register to your account using only the extension number.
Password:Enter your SIP Password here. Your SIP password is the same password you selected when you were signing up for your Callcentric account. Optionally you may change it in your extension preferences.
Enable Outbound Proxy Server:Enable
Outbound Proxy Server:callcentric.com
SIP Server 1 Server Host:callcentric.com


Your configuration should now look similar to the one shown in the picture below:



Once all changes have been made please click the "Confirm" button on the bottom of the page.

STEP 5 That's it! You can now make a phone call.
You can make a test call to 17771234567, or if you are signed up for one of Callcentric's rate plans you can place a call to a traditional landline or mobile phone by dialing either:
1 + the area code and number for calls to the US
Or
011 + the country code, area code, and number for calls worldwide (you may also use 00 instead of 011).

To test inbound calls from Callcentric to your Yealink installation, follow the directions listed in this FAQ.
