| GENERAL INFORMATION |
 |
 The VSP725 is an IP Phone from the VTech Eris Terminal family of phones that is cost-effective, reliable, and powerful. The VTech VSP725 offers excellent sound quality, support for up to 3 lines, and many other useful features such as PoE Support (Power over Ethernet).
|
|
| RESOURCES |
|
Website:
Manufacturer Homepage
Product Page
Help / Support
VSP725 Deskset Administrator Manual
|
|
| Configuring VSP725 |
|
Here we will configure the VSP725 through the web interface in order to register to Callcentric to allow you to place/receive calls. The information presented in this guide is based on Version 1.0.2 of the VSP725 firmware. If you are running a different firmware version some of menu options and settings may be different.
This guide assumes that your VSP725 has a valid IP Address and that you have administrative access to the web interface of the device. If you need assistance accessing the web interface for your VSP725 web administration pages, please refer to the VSP725 Deskset Administrator manual.
We recommend that you read each step through in its entirety before performing the action(s) indicated within the step.
|
 | |
| STEP 1 |
Logging into your device |
|
Log into the VSP725's administrative interface and click on the System tab that is located on the top menu bar; then click on the Account 1 section found on the side menu bar.
|
| STEP 2 |
Configuring your Callcentric account |
|

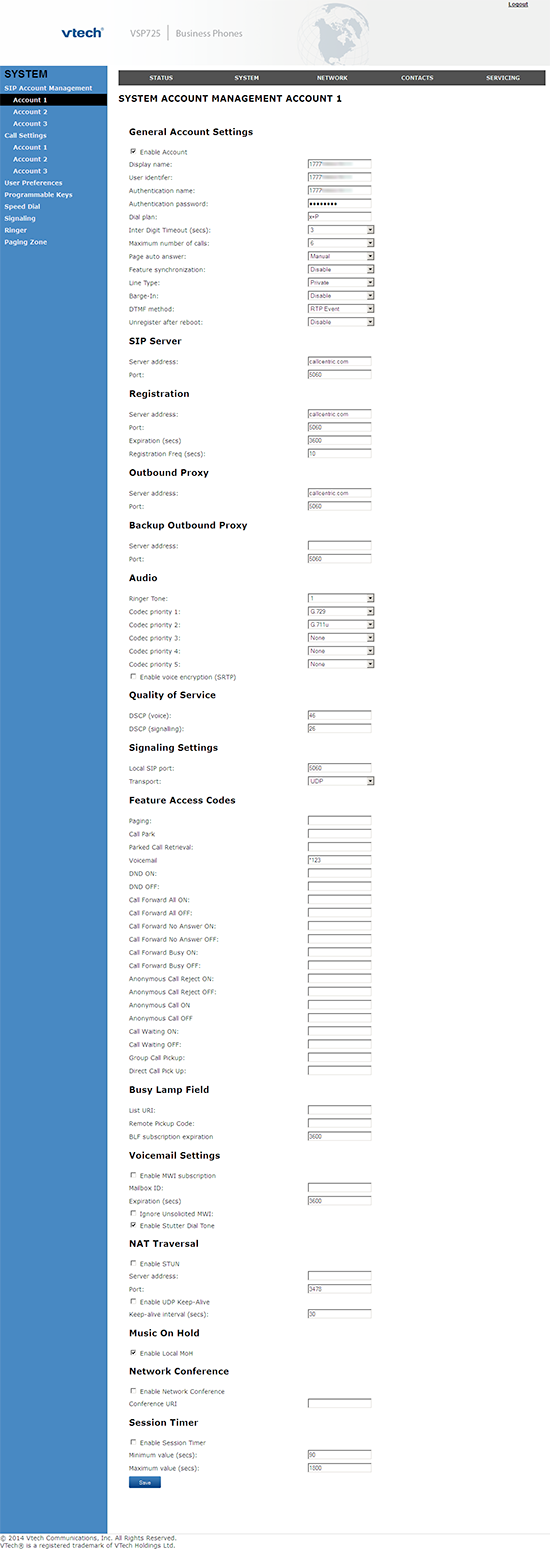

Please use the following settings as indicated by the screen captures below. Once complete, please click on the Save Settings button to apply/save your settings:
| General Account Settings |
| Enable Account | enabled/checked |
| Display Name | 1777MYCCID, where 1777MYCCID is the 1777 number assigned to you by Callcentric |
| User identifier | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Authentication name | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Authentication password | Enter your extension SIP Password here. Your extension SIP password is the password you created for the extension you are trying to use. You may edit the SIP password you wish to use in by logging into your My Callcentric account and clicking on the Extension menu link and then modifying the appropriate extension. |
| DTMF method | RTP Event |
| SIP Server |
| Server Address | sip.callcentric.net |
| Registration |
| Server Address | sip.callcentric.net |
| Outbound Proxy |
| Server Address | sip.callcentric.net |
| Audio |
| Codec priority 1 | G.729 |
| Codec Priority 2 | G.711u |
| Codec Priority 3-5 | None |
| Feature Access Code |
| Voicemail | *123 |
Once complete, please click on the Save button.
|
| STEP 3 |
Checking Registration Status |
|

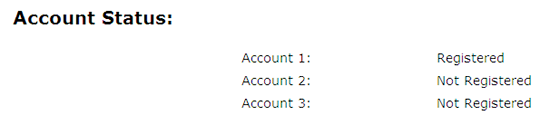

To ensure that your VSP725 has successfully registered to our service click on the Status tab on the top menu bar. Locate the Account Status section. You should see that the Account that you've just configured is Registered.
| | STEP 4 |
That's it! You can now make a phone call. |
|
You can make a test call to 17771234567, or if you are signed up for one of Callcentric's rate plans you
can place a call to a traditional landline or mobile phone by dialing either:
1 + the area code and number for calls to the US
Or
011 + the country code, area code, and number for calls worldwide
(you may also use 00 instead of 011).
|
|
|
