VTech's VSP600 is a DECT Cordless Phone System aimed at the residential and small business user. The VSP600 is a scalable solution that supports up to six handsets and 6 SIP lines in addition to its excellent DECT 6.0 sound quality and reception.

RESOURCES

Website:
Manufacturer Homepage
Product Page

Help / Support
VSP600 Base Station Handset Administrator Guide

Configuring VSP600

Here we will configure the VSP600 through the web interface in order to register to Callcentric to allow you to place and receive calls. The information presented in this guide is based on Version 1.0.2 of the VSP600 firmware. If you are running a different firmware version some of the menu options and settings may be different.

This guide assumes that your VSP600 has a valid IP address and that you have administrative access to the web interface of the device. If you need assistance accessing the web interface for your VSP600 web administration pages, please refer to the VSP600 Base Station Administrator Manual.

We recommend that you read each step through in its entirety before performing the action(s) indicated within the step.

STEP 1

Logging into your device

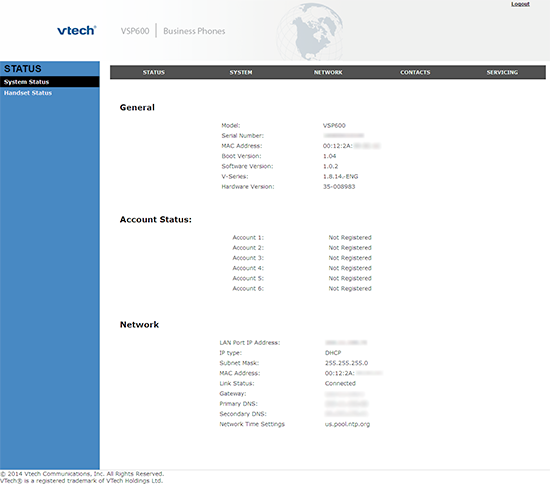

Log into the VPS600's administrative interface and click on the System tab from the top menu bar. From there, click on the Account 1 section in the side menu bar.

STEP 2

Configuring your Callcentric account

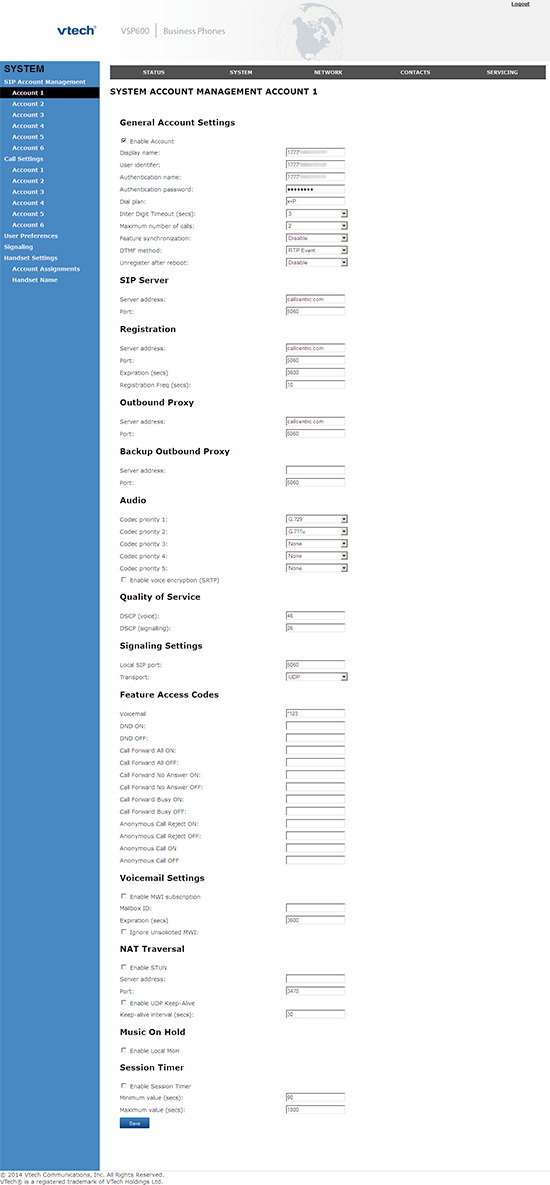

Please use the settings detailed in the screen captures below. Once complete click on the Save Settings button to apply/save your settings:

General Account Settings
Enable Account	enabled/checked
Display Name	1777MYCCID, where 1777MYCCID is the 1777 number assigned to you by Callcentric
User identifier	This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to. For example: 17770001234101 would register to extension 101 on account 17770001234. You cannot register to your account using only the extension number.
Authentication name	This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to. For example: 17770001234101 would register to extension 101 on account 17770001234. You cannot register to your account using only the extension number.
Authentication password	Enter your extension SIP Password here. Your extension SIP password is the password you created for the extension you are trying to use. You may edit the SIP password you wish to use in by logging into your My Callcentric account and clicking on the Extension menu link and then modifying the appropriate extension.
DTMF method	RTP Event
SIP Server
Server Address	sip.callcentric.net
Registration
Server Address	sip.callcentric.net
Outbound Proxy
Server Address	sip.callcentric.net
Audio
Codec priority 1	G.729
Codec Priority 2	G.711u
Codec Priority 3-5	None
Feature Access Code
Voicemail	*123

Once done click on the Save settings button.

STEP 3

Checking Registration Status

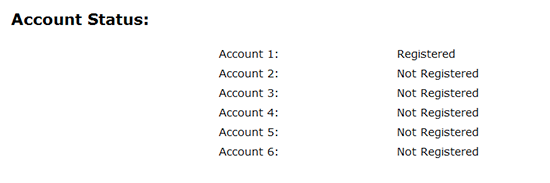

To ensure that your VSP600 has successfully registered to our service please click on the STATUS tab on the top menu bar. Locate the Account Status section. You should see that the Account you just configured is now Registered.

STEP 4

That's it! You can now make a phone call.

You can make a test call to 17771234567, or if you are signed up for one of Callcentric's rate plans you can place a call to a traditional landline or mobile phone by dialing either:
1 + the area code and number for calls to the US
Or
011 + the country code, area code, and number for calls worldwide (you may also use 00 instead of 011).
