| STEP 1 |
Logging into your device |
|
Login to the VDP650's administrative interface and click on the System tab from the top menu bar. From there, click on the Account 1 section in the side menu bar.
|
| STEP 2 |
Configuring your Callcentric account |
|

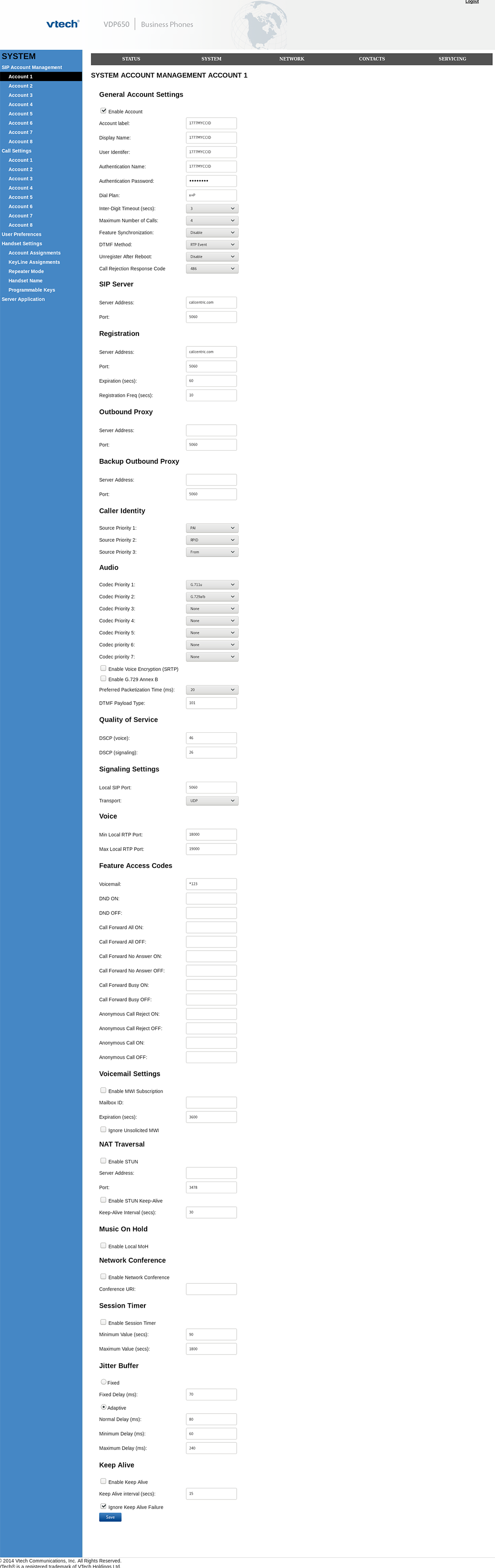

Please enter the settings detailed in the screenshots below. After doing so, click on the Save Settings button to save your settings:
| General Account Settings |
| Enable Account | enabled/checked |
| Display Name | 1777MYCCID, where 1777MYCCID is the 1777 number assigned to you by Callcentric |
| User identifier | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Authentication name | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Authentication password | Enter your extension SIP Password here. Your extension SIP password is the password you created for the extension you are trying to use. You may edit the SIP password you wish to use in by logging into your My Callcentric account and clicking on the Extension menu link and then modifying the appropriate extension. |
| DTMF method | RTP Event |
| SIP Server |
| Server Address | sip.callcentric.net |
| Registration |
| Server Address | sip.callcentric.net |
| Outbound Proxy |
| Server Address | sip.callcentric.net |
| Audio |
| Codec priority 1 | G.729 |
| Codec Priority 2 | G.711u |
| Codec Priority 3-5 | None |
| Feature Access Code |
| Voicemail | *123 |
|
| STEP 3 |
Checking Registration Status |
|

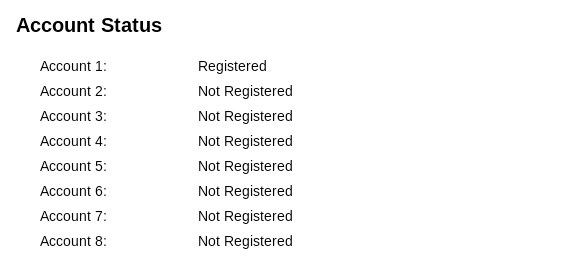

To ensure that your VDP650 has successfully registered to our service, click on the Status option on the top menu bar and select the Account Status section. You should see that the Account you just configured is now Registered.
|
| STEP 4 |
That's it! You can now make a phone call. |
|
You can make a test call to 17771234567, or if you are signed up for one of Callcentric's rate plans you
can place a call to a traditional landline or mobile phone by dialing either:
1 + the area code and number for calls to the US
Or
011 + the country code, area code, and number for calls worldwide
(you may also use 00 instead of 011).
|
VTech's VDP650 is a cordless phone system that is fantastic for both residential and SMB installs. The VDP650 system supports up to 10 handsets and utilizes DECT 6.0 technology to ensure excellent sound quality and range.
