| STEP 1 |
Logging into your device |
|

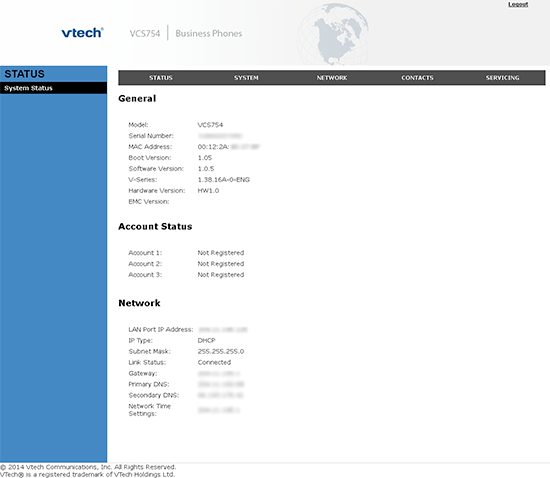

Log into the VCS754's administrative interface and click on the System tab from the top menu bar. Then click on the Account 1 section found on the side menu bar.
|
| STEP 2 |
Configuring your Callcentric account |
|

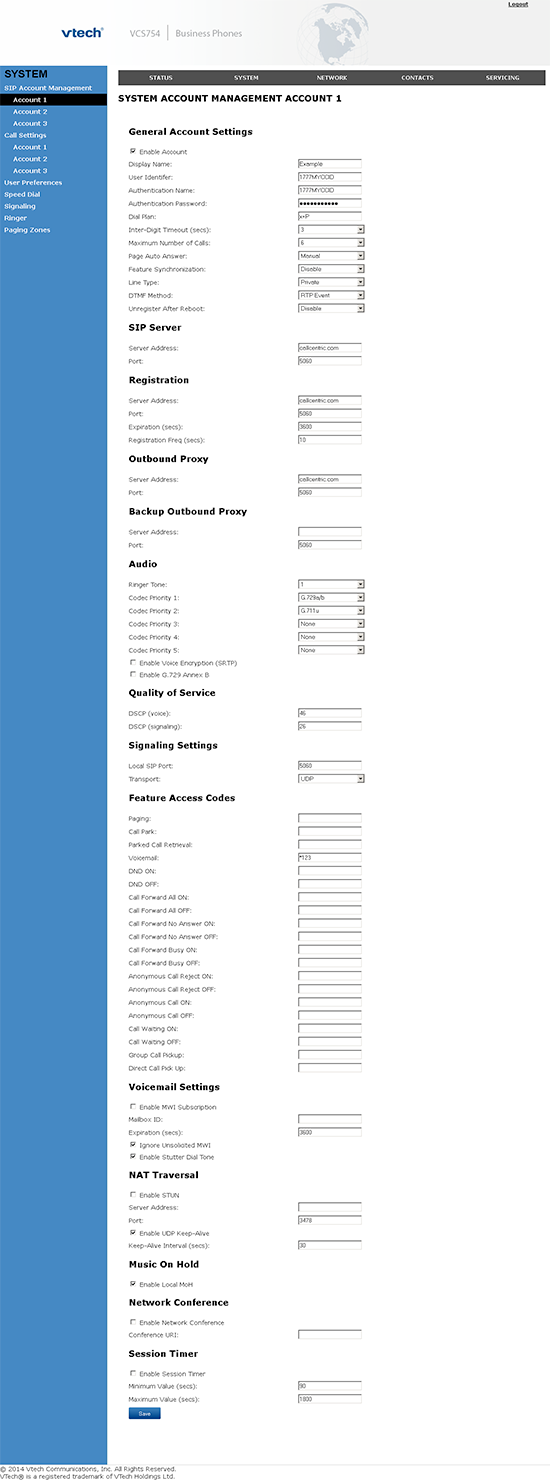

Please use the settings detailed in the screen captures below. After you have finished entering these settings, click on the Save Settings button to apply/save your settings:
| General Account Settings |
| Enable Account | enabled/checked |
| Display Name | 1777MYCCID, where 1777MYCCID is the 1777 number assigned to you by Callcentric |
| User identifier | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Authentication name | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Authentication password | Enter your extension SIP Password here. Your extension SIP password is the password you created for the extension you are trying to use. You may edit the SIP password you wish to use in by logging into your My Callcentric account and clicking on the Extension menu link and then modifying the appropriate extension. |
| DTMF method | RTP Event |
| SIP Server |
| Server Address | sip.callcentric.net |
| Registration |
| Server Address | sip.callcentric.net |
| Outbound Proxy |
| Server Address | sip.callcentric.net |
| Audio |
| Codec priority 1 | G.729 |
| Codec Priority 2 | G.711u |
| Codec Priority 3-5 | None |
| Feature Access Code |
| Voicemail | *123 |
Once you have finished entering the setting detailed above, please click on the Save button.
|
| STEP 3 |
Checking Registration Status |
|

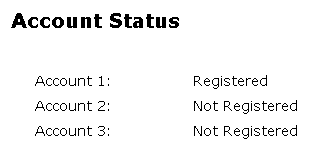

To ensure that your VCS754 has successfully registered to our service click on the Status tab on the top menu bar and locate the Account Status section. You should see that the Account you just configured is now Registered.
|
| STEP 4 |
That's it! You can now make a phone call. |
|
You can make a test call to 17771234567, or if you are signed up for one of Callcentric's rate plans you
can place a call to a traditional landline or mobile phone by dialing either:
1 + the area code and number for calls to the US
Or
011 + the country code, area code, and number for calls worldwide
(you may also use 00 instead of 011).
|
The VCS754 is an affordable, premium quality conference system from the Vtech Eris Station family of phones. The VCS754 features support for up to 3 lines and comes included with 4 Wireless Microphones for interference free audio conferencing. As the VCS754 provides excellent sound quality it is an ideal solution for meetings and conference calls.
