| STEP 1 |
Logging into your device |
|

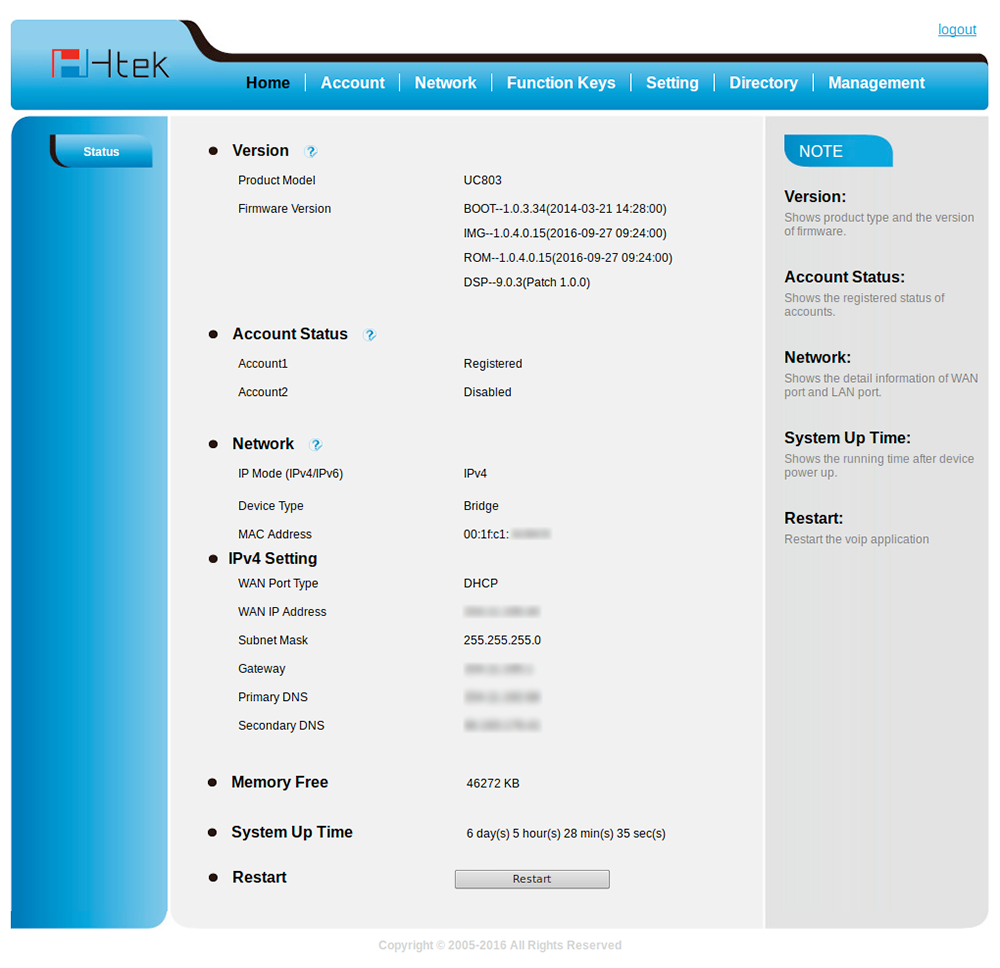

Once you have retrieved the IP address of your device and have pointed your web browser to that IP address, you should be greeted by the Status screen which displays general information about your device; such as the current firmware version, registration status, etc:
From the navigation bar at the top of this page, click on the Account link. On this page, please be sure that the Account option is set to Account 1 on the drop down menu.
|
| STEP 2 |
Configuring your Callcentric account |
|

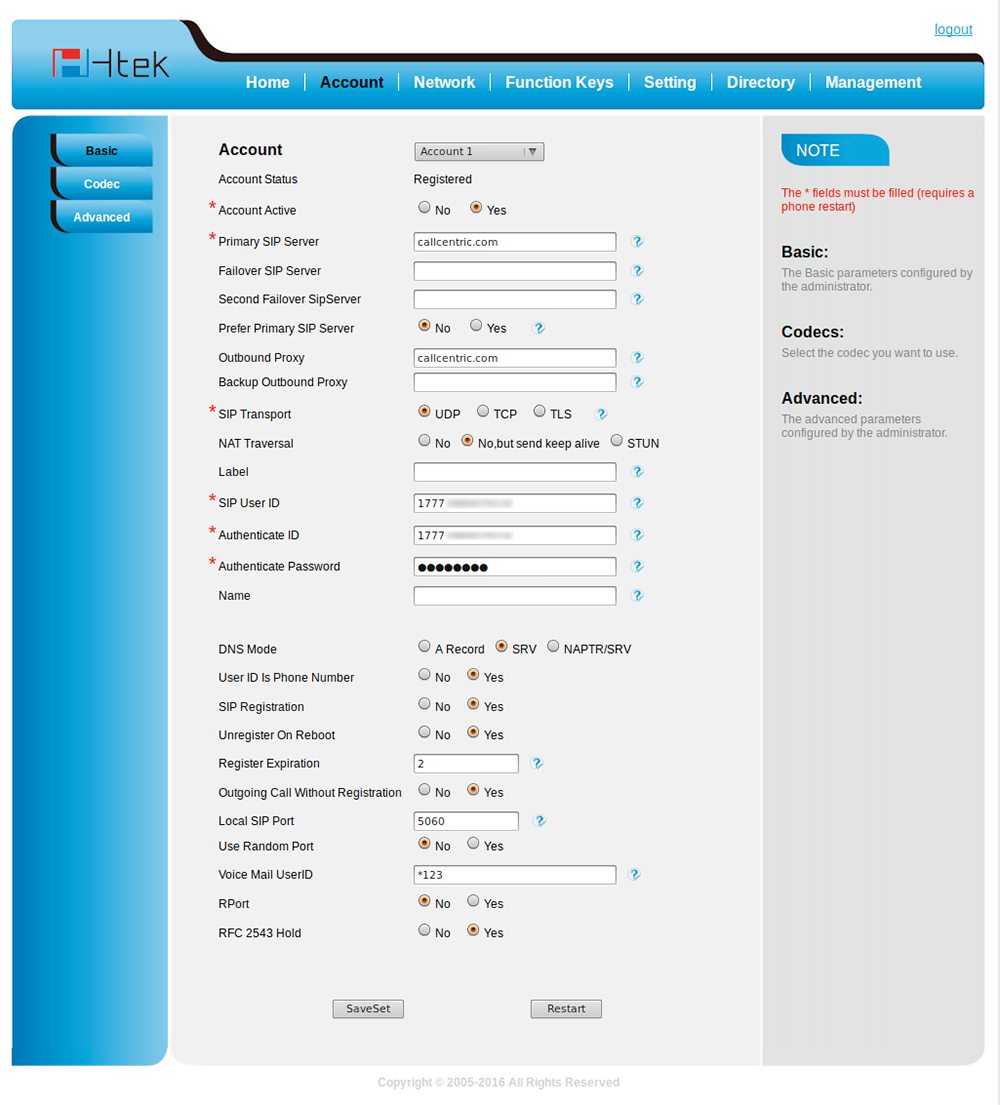

On this page, please use the settings detailed below. Your configuration page should look similar to the screenshot provided at the end of this step:
|
| Account Active | Yes |
| Primary SIP Server | sip.callcentric.net |
| Outbound Proxy | sip.callcentric.net |
| SIP Transport | UDP |
| NAT Traversal | No, but send keep alive |
| SIP User ID | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Authenticate ID | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Authenticate Password | Enter your extension SIP Password here. Your extension SIP password is the password you created for the extension you are trying to use. You may edit the SIP password you wish to use in by logging into your My Callcentric account and clicking on the Extension menu link and then modifying the appropriate extension. |
| Name | You may enter any name on this field. |
| DNS Mode | SRV |
| User ID is Phone Number | Yes |
| SIP Registration | Yes |
| Unregister On Reboot | Yes |
| Register Expiration | 2 |
| Voice Mail UserID | *123 |
Once you have entered the settings detailed above, please click on the SaveSet button to apply your settings.
|
| STEP 3 |
Codec Configuration |
|

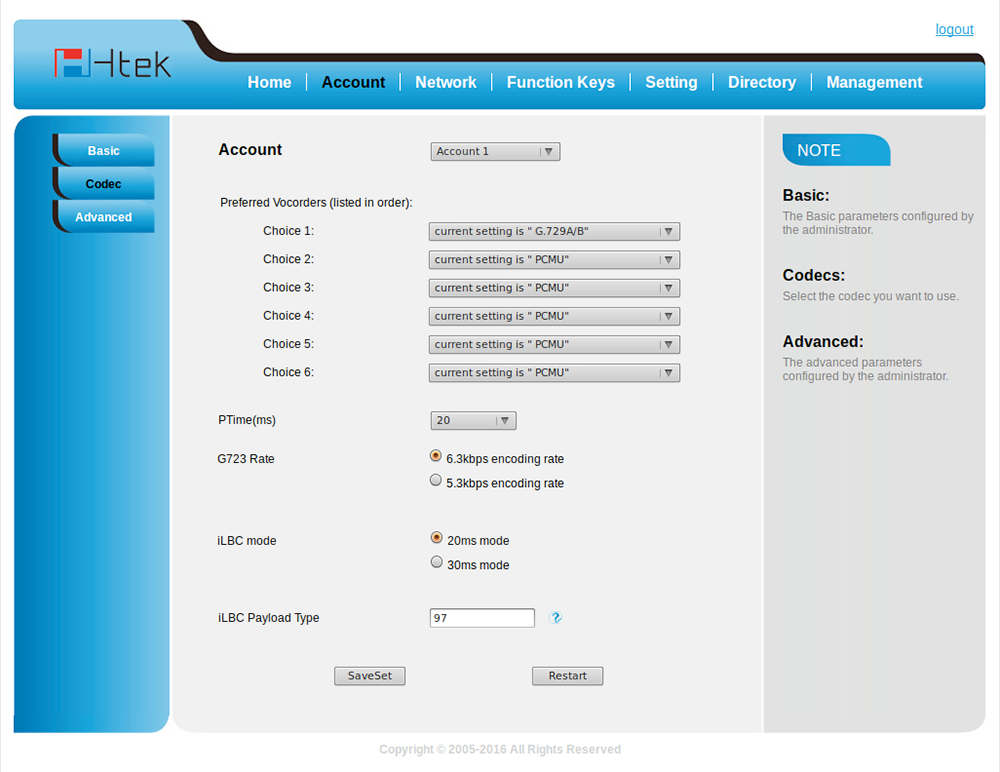

From the navigation menu bar located on the left side of the page, click on the Codec link. On this page, please be sure that you update the settings so that they match the screenshot below.
|
| Preferred Vocoders (listed in order) Choice 1: | G.729A/B |
| Choice 2 - 6 | PCMU |
Once done click on the SaveSet button to apply your settings.
|
| STEP 4 |
Advanced Configurations |
|

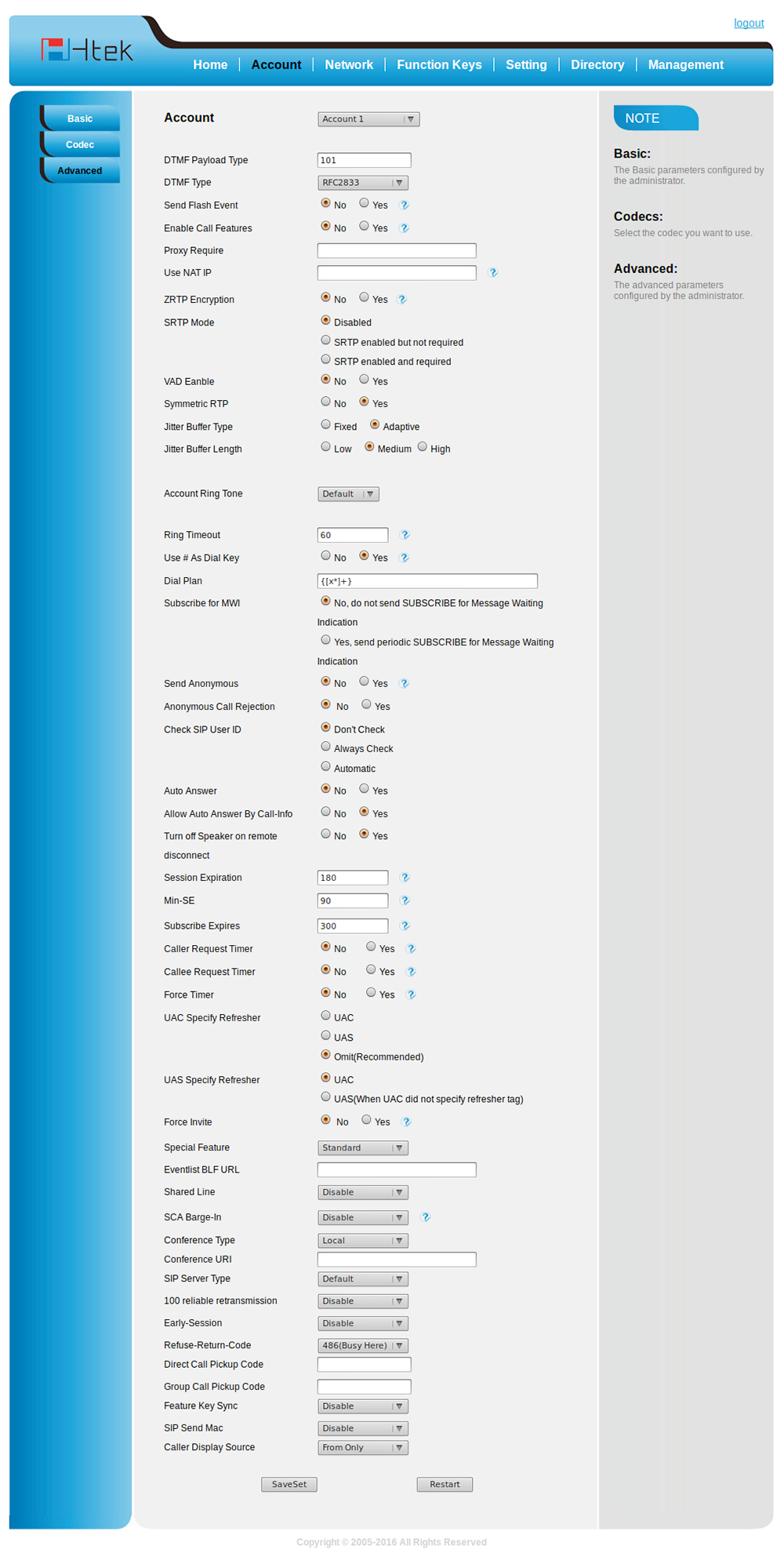

From the navigation menu bar on located on the left side of the page, click on the Advanced link. On this page, please be sure that you set the following options indicated below; your configuration page should look similar to the screenshot provided at the end of this step:
|
| DTMF Type | RFC2833 |
| Enable Call Features | No |
| Dial Plan | {[x*]+} |
Once done click on the SaveSet button to apply your settings.
|
| STEP 5 |
Checking Registration Status |
|
To ensure that your UC803 has successfully registered to our service, click on the Home link on the top menu bar and locate the Account Status section. You should see that the Account that you just configured is now Registered.
|
| STEP 6 |
That's it! You can now make a phone call. |
|
You can make a test call to 17771234567, or if you are signed up for one of Callcentric's rate plans you
can place a call to a traditional landline or mobile phone by dialing either:
1 + the area code and number for calls to the US
Or
011 + the country code, area code, and number for calls worldwide
(you may also use 00 instead of 011).
|
The UC803 is a 2 Line IP Phone solution from H-Tek offering stable voice functionality, along with many other features. It comes with a full color display and HD audio support.
