Grandstream's GXP2170 is a powerful, full featured IP phone that is ideal for busy users. Notable features include a 4.3 inch (480x272) color-screen LCD, Bluetooth, 12 line keys, 5 soft keys, support for up to 6 SIP accounts, and dual gigabit ports with integrated PoE.

RESOURCES

Website:
Grandstream Home Page
Grandstream GXP2170 Product Page

Help / Support
GXP2170 Product Manual
Grandstream's Firmware Repository

Configuring the GXP2170

These instructions are based on Grandstream GXP2170 firmware version 1.0.9.26; if you are running a different firmware version, some menus/settings may be different. These instructions are also based on using the GXP2170 in its factory default configuration, which obtains a dynamic IP address automatically from your router using DHCP. For information on configuring your GXP2170 with a static IP address, please refer to the GXP2170 user manual.

In this guide we will go through configuring the GXP2170 in order to register to the Callcentric servers so that you will be able to place and receive calls using your Callcentric account. Before proceeding, please ensure that you have properly added the device to your network by connecting it to your router or gateway.

We recommend that you read each step through in its entirety before performing the action(s) indicated within the step.

Note: Although this device supports many advanced features/options, this guide will only detail the specific settings which are required to establish basic connectivity between your GXP2170 and our service. If you need additional assistance with any specific issue please let us know.

STEP 1

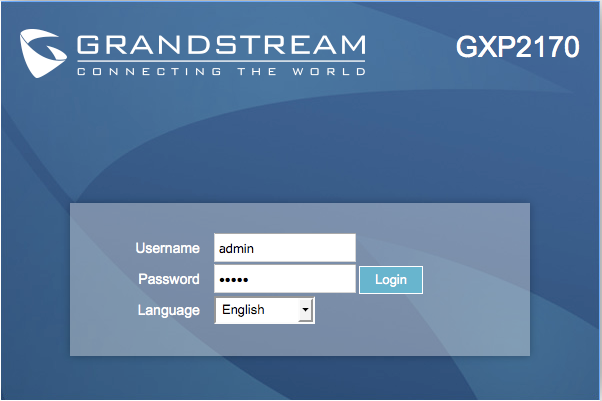

Logging into your device

STEP 2

Configuring your Callcentric account

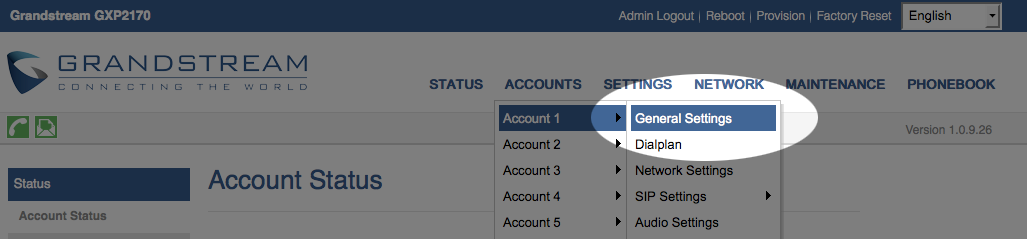

From the top menu bar, click on the Account option. After doing so, select the Account 1 option from the sub menu on the top of the screen.

You should now be in the General Settings configuration page of your IP phone. Please configure your settings in-line with those detailed in the screenshot below. After doing so, click on the Save and Apply button to apply/save your settings:

Setting	Value
Account Active	Yes
Account Name	callcentric
SIP Server	sip.callcentric.net
Outbound Proxy	sip.callcentric.net
SIP User ID	This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to. For example: 17770001234101 would register to extension 101 on account 17770001234. You cannot register to your account using only the extension number.
Authentication ID	This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to. For example: 17770001234101 would register to extension 101 on account 17770001234. You cannot register to your account using only the extension number.
Authentication Password	Enter your extension SIP Password here. Your extension SIP password is the password you created for the extension you are trying to use. You may edit the SIP password you wish to use in by logging into your My Callcentric account and clicking on the Extension menu link and then modifying the appropriate extension.
Name	You may specify any name on this field
Voice Mail UserID	*123

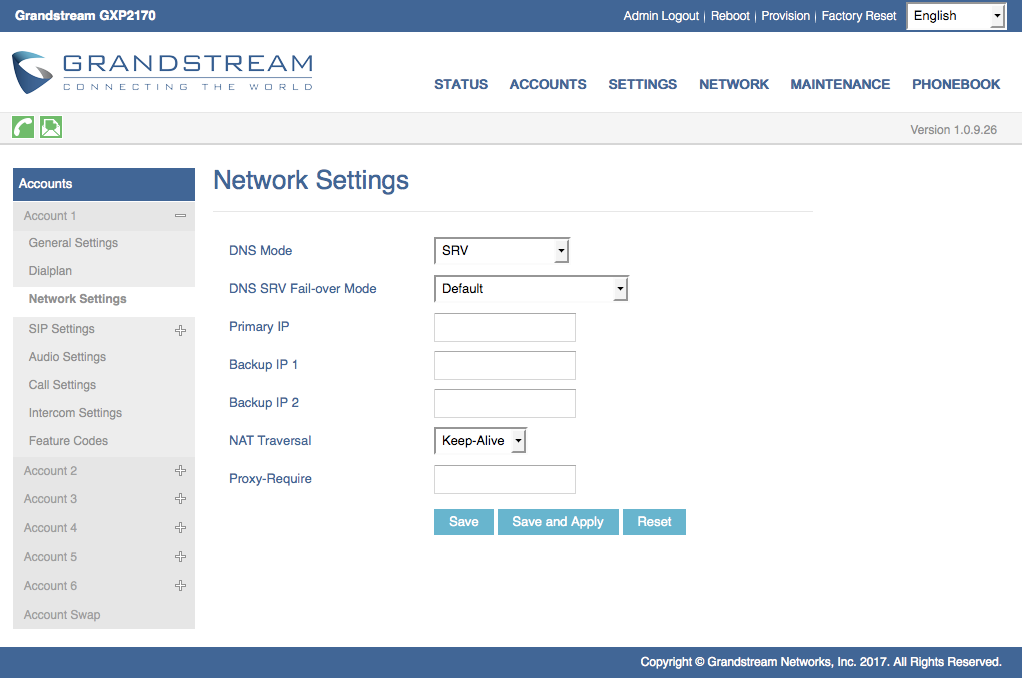

Next, locate the Network Settings menu option on the side menu bar. On this page, please configure your settings in-line with those detailed in the screenshots below. After you have finished entering these settings, click on the Save and Apply button to apply/save your settings:

Setting	Value
DNS Mode	SRV
NAT Traversal	keep-alive

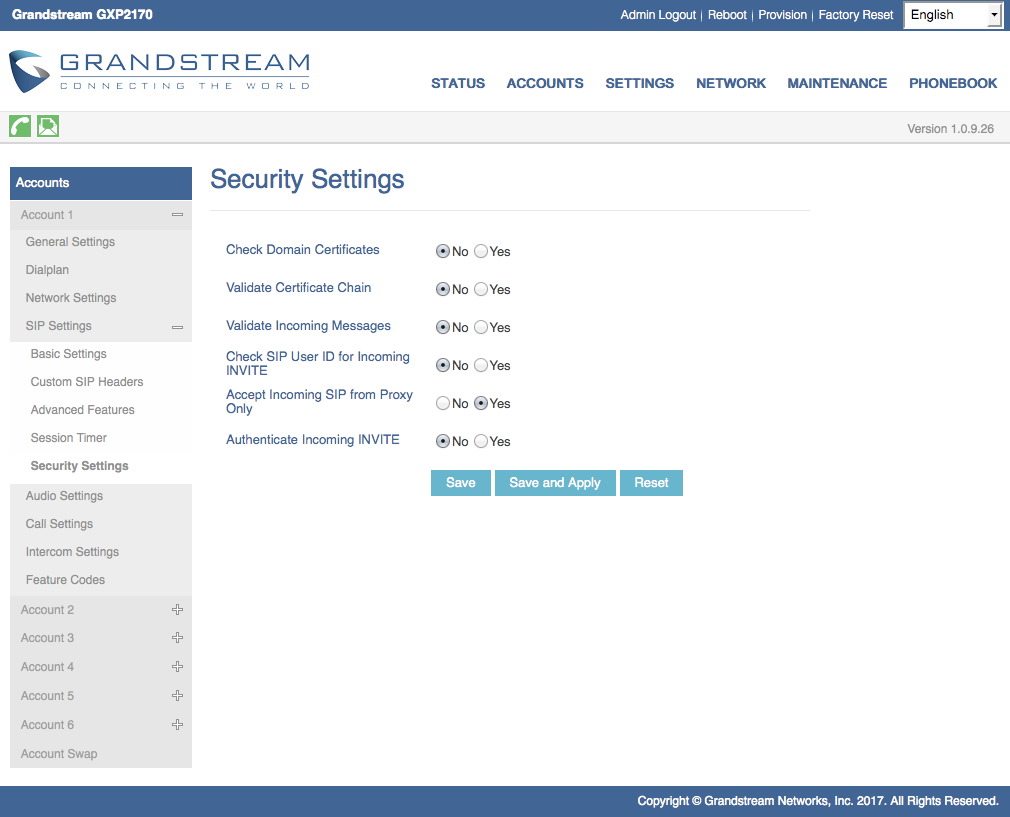

Next, from the side menu bar, navigate to the SIP Settings >> Security Settings. On this page, locate the option Accept Incoming SIP from Proxy Only and set it to Yes. After you have finished entering this setting, click on the Save and Apply button to apply/save your settings:

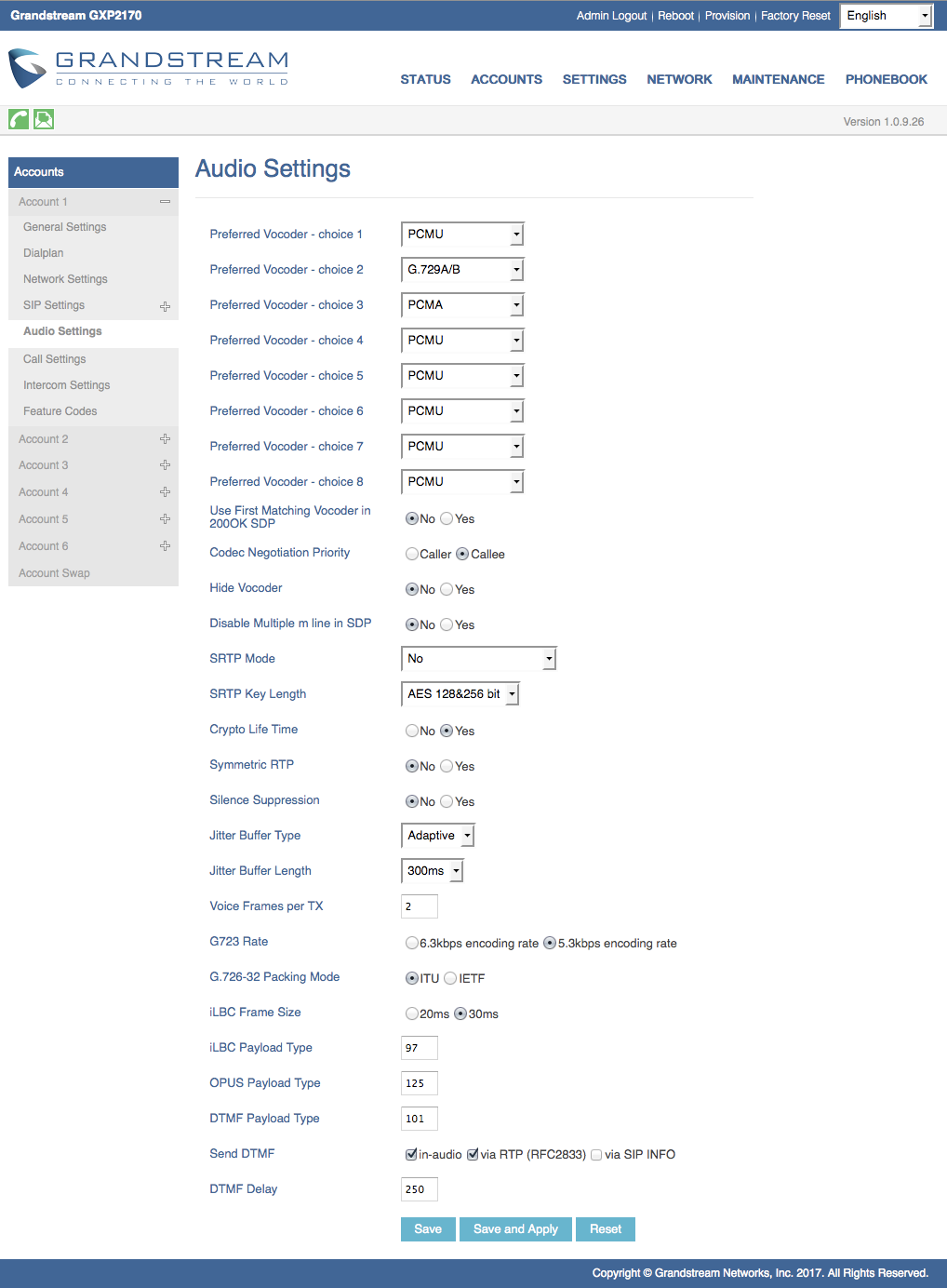

Next, click on Audio Settings which is located on the side menu bar. On this page, please use the settings detailed in the screen captures below. After you have finished entering these settings, click on the Save and Apply button to apply/save your settings:

Setting	Value
Preferred Vocoder	Choice 1 - PCMU Choice 2 - G729 Choice 3-8 - PCMU
Send DTMF	check/enable both in-audio and via RTP (RFC2833)

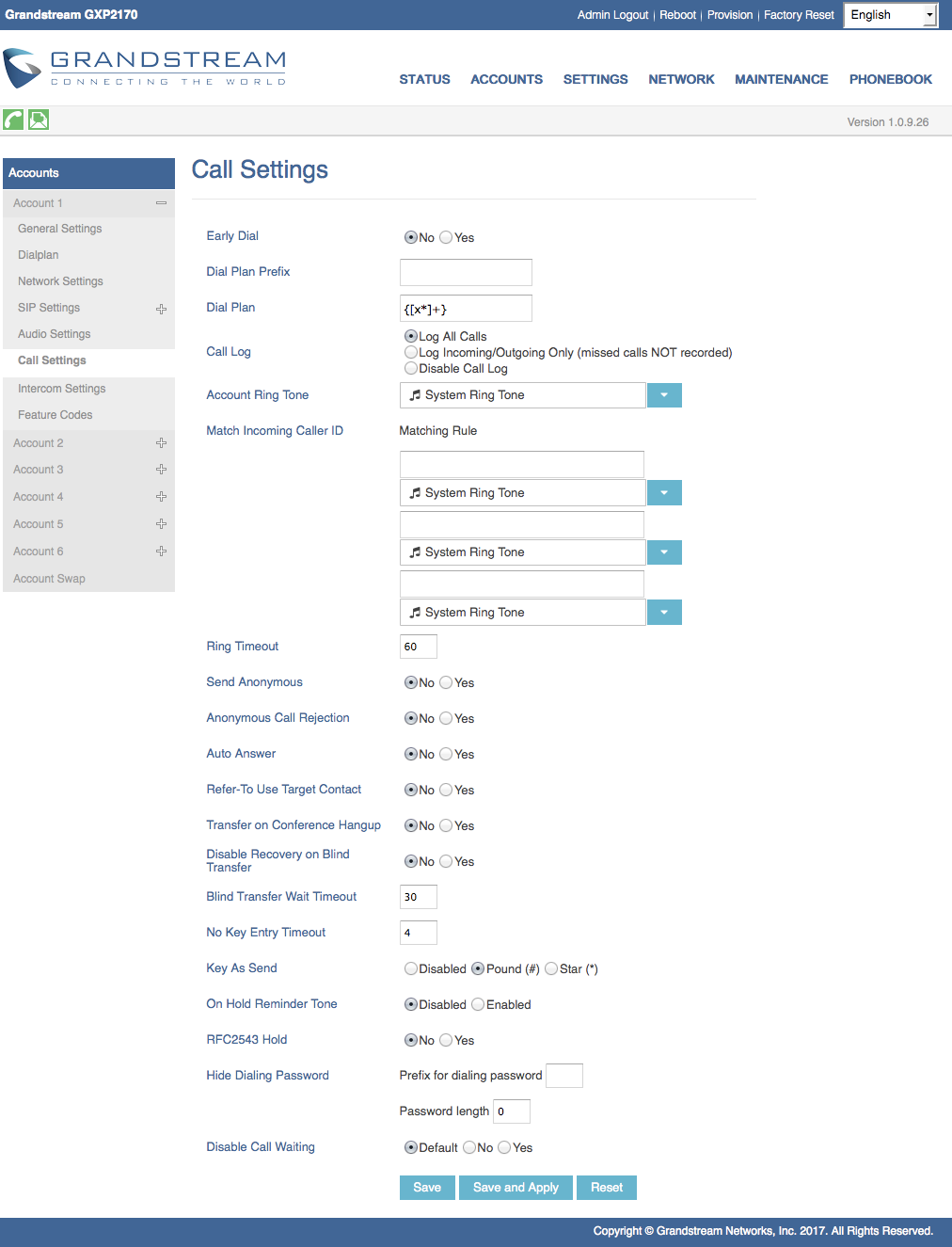

Next, click on Call Settings which is located on the side menu bar. On this page, configure your settings in-line with those detailed in the screenshots below. After you have finished entering these settings, click on the Save and Apply button to apply/save your settings:

Setting	Value
Dialplan	{[x*]+}

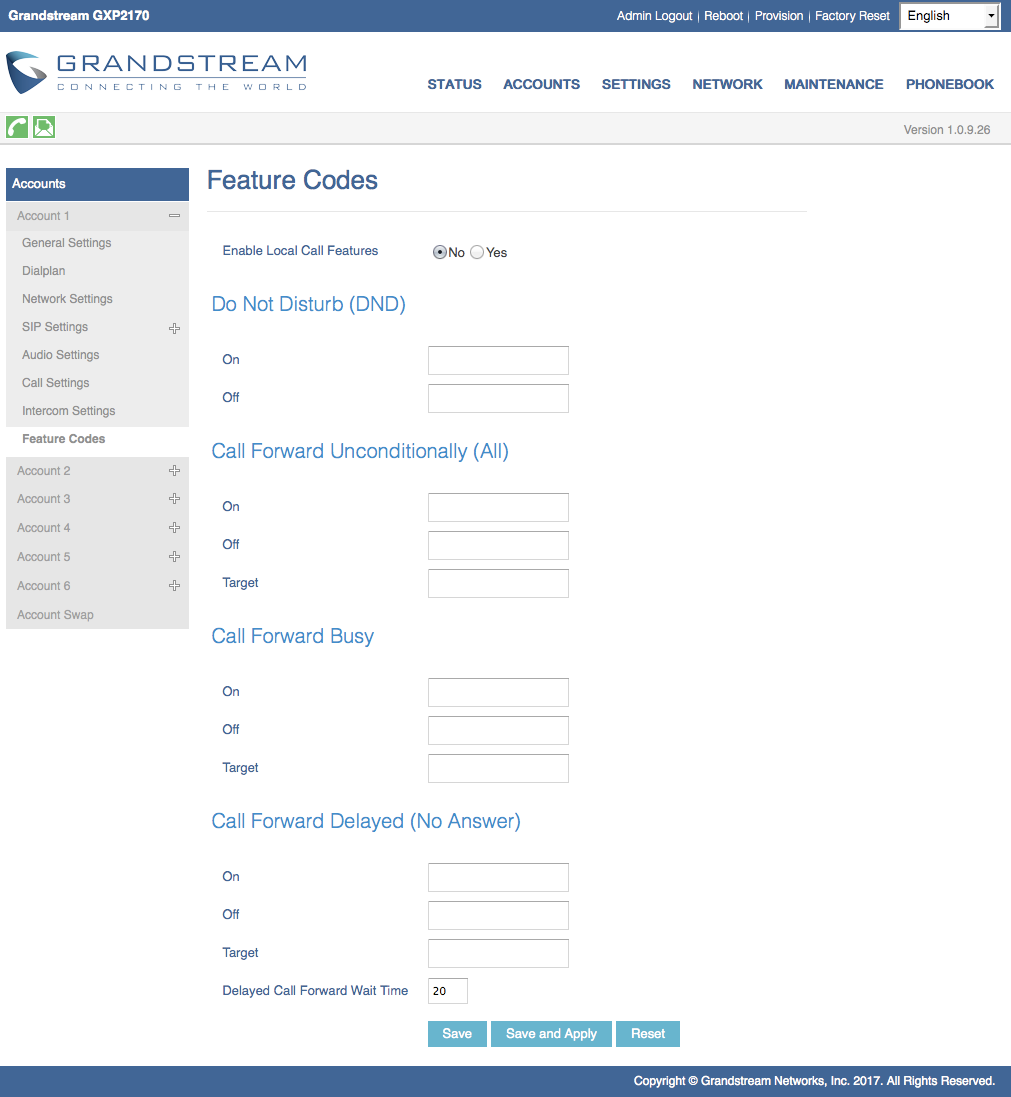

Finally from the side menu bar, locate the Feature Codes configuration page. On this page, locate the Enable Local Call Features option and set this to No. After you have finished updating this setting, click on the Save and Apply button to apply/save your settings:

STEP 3

Checking Registration Status

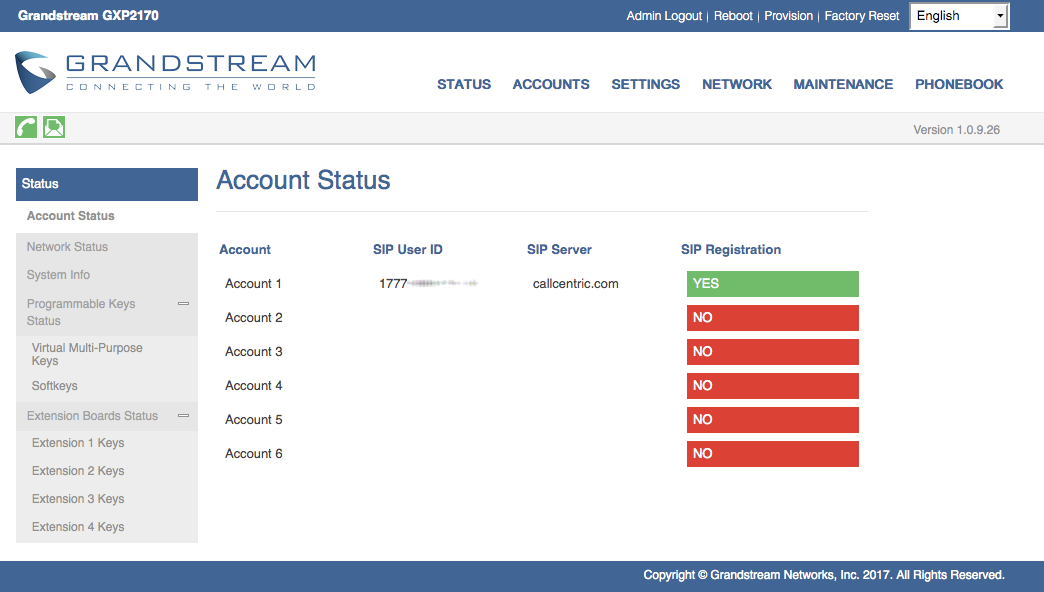

To ensure that your GXP2170 has successfully registered to our service, click on the Status option on the top menu bar and locate the Account Status section. You should see that the account you just configured is now Registered.

STEP 4

That's it! You can now make a phone call

You can make a test call to 17771234567, or if you are signed up for one of Callcentric's rate plans you can place a call to a traditional landline or mobile phone by dialing either:
1 + the area code and number for calls to the US
Or
011 + the country code, area code, and number for calls worldwide (you may also use 00 instead of 011).
