The Grandstream GXP1760 is a full-featured, mid-range IP phone for Enterprise and SMB Users. This IP Phone has HD audio, as well as support for up to 6 lines and 3 SIP accounts.

RESOURCES

Websites
Grandstream Homepage
Grandstream GXP1760 Product Page

Help/Support
GXP1760 Product Manual

Configuring the GXP1760

This setup guide is for the Grandstream GXP1760 and is based on firmware revision 1.0.1.8. If you are running a different firmware version some of the menus/settings may be different. These instructions are also based on using the GXP1760 in its factory default configuration, which obtains a dynamic IP address automatically from your router using DHCP. For information on configuring your GXP1760 with a Static IP Address, please refer to the GXP1760 User Manual.

In this guide we will go through configuring the GXP1760 in order to register to the Callcentric servers so that you will be able to place and receive calls using your Callcentric account. Before moving forward please ensure that you have properly added the device to your network by connecting it to your router or gateway.

We recommend that you read each step through in its entirety before performing the action(s) indicated within the step.

Note: Although this device supports many advanced features/options; this guide will only detail the specific settings which are required to establish basic connectivity between your GXP1760 and our service. If you need additional assistance with any specific issue please let us know.

Step 1

Logging into your device

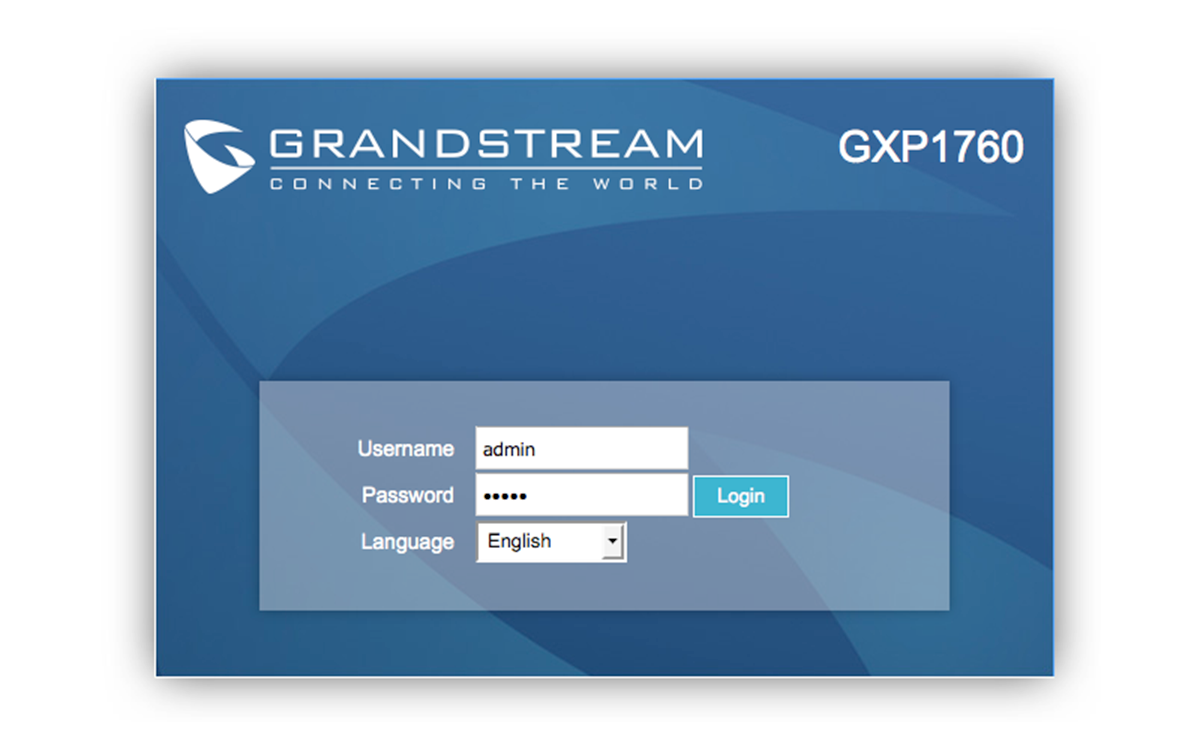

Login to the GXP1760's administrative interface by using the default username (admin) and default password (admin).

Step 2

Configuring your Callcentric account

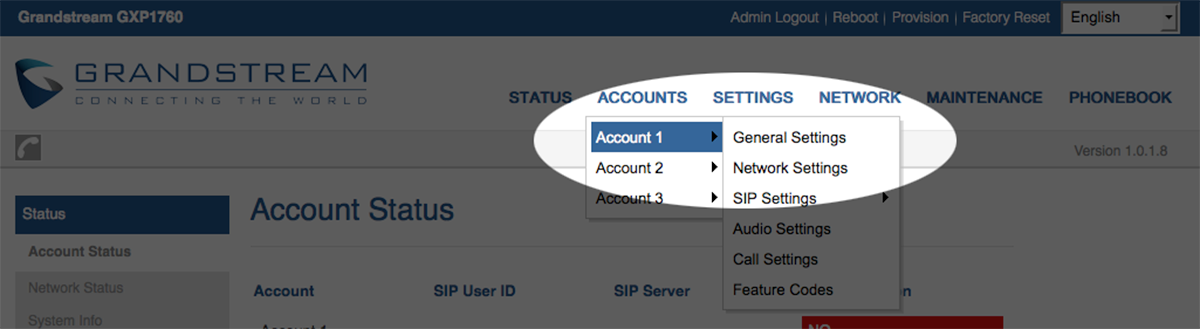

Click on the Account option located on the top menu bar and then select Account 1 from the sub-menu.

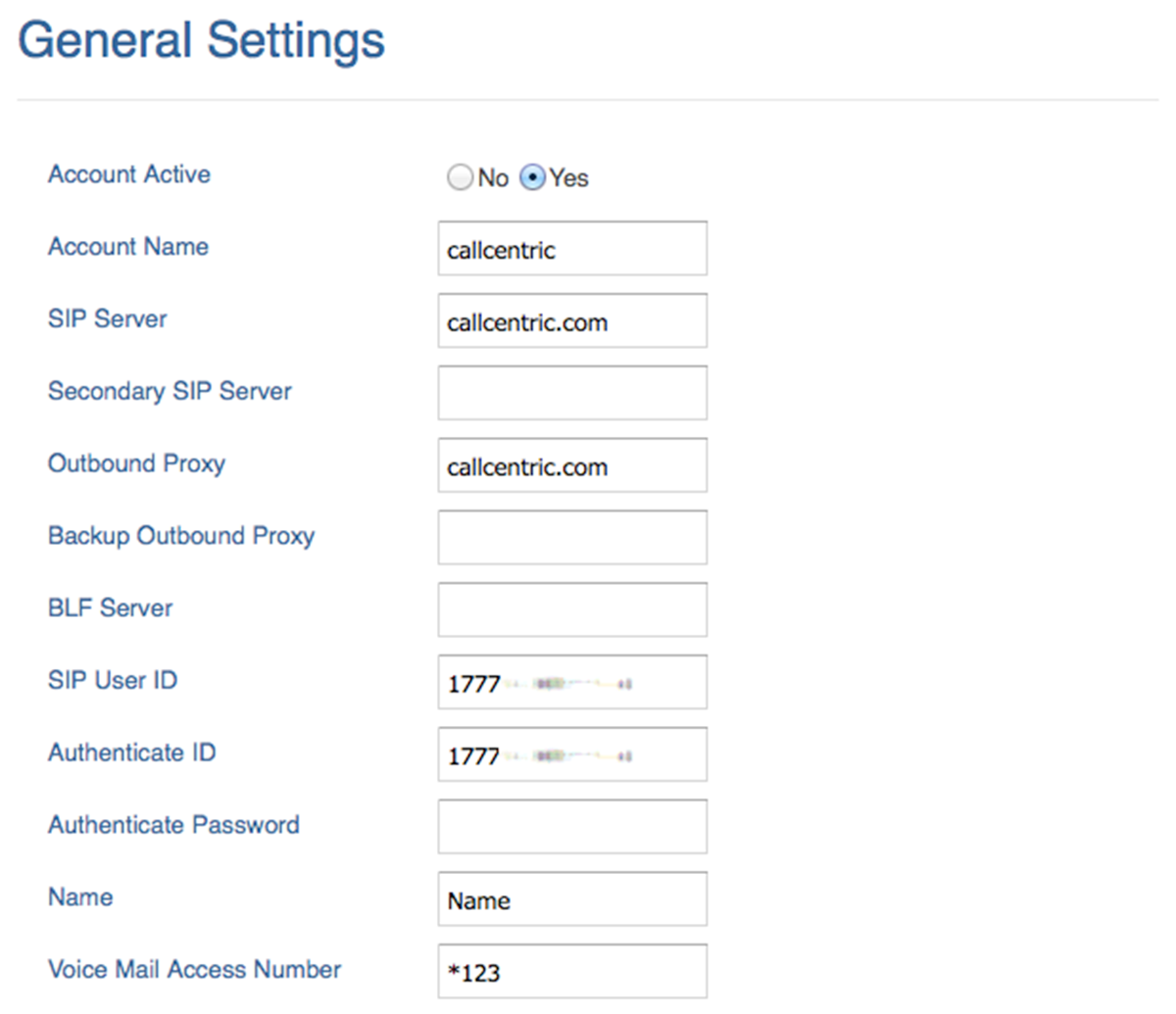

You should now be in the General Settings configuration page of your IP phone. Please use the settings detailed in the screen captures below. After you have finished entering these settings, click on the Save and Apply button to apply/save your settings:


Setting	Value
Account Active	Yes
Account Name	callcentric
SIP Server	sip.callcentric.net
Outbound Proxy	sip.callcentric.net
SIP User ID	This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to. For example: 17770001234101 would register to extension 101 on account 17770001234. You cannot register to your account using only the extension number.
Authenticate ID	This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to. For example: 17770001234101 would register to extension 101 on account 17770001234. You cannot register to your account using only the extension number.
Authenticate Password	Enter your extension SIP Password here. Your extension SIP password is the password you created for the extension you are trying to use. You may edit the SIP password you wish to use in by logging into your My Callcentric account and clicking on the Extension menu link and then modifying the appropriate extension.
Name	You may specify any name on this field
Voice Mail Access Number	*123

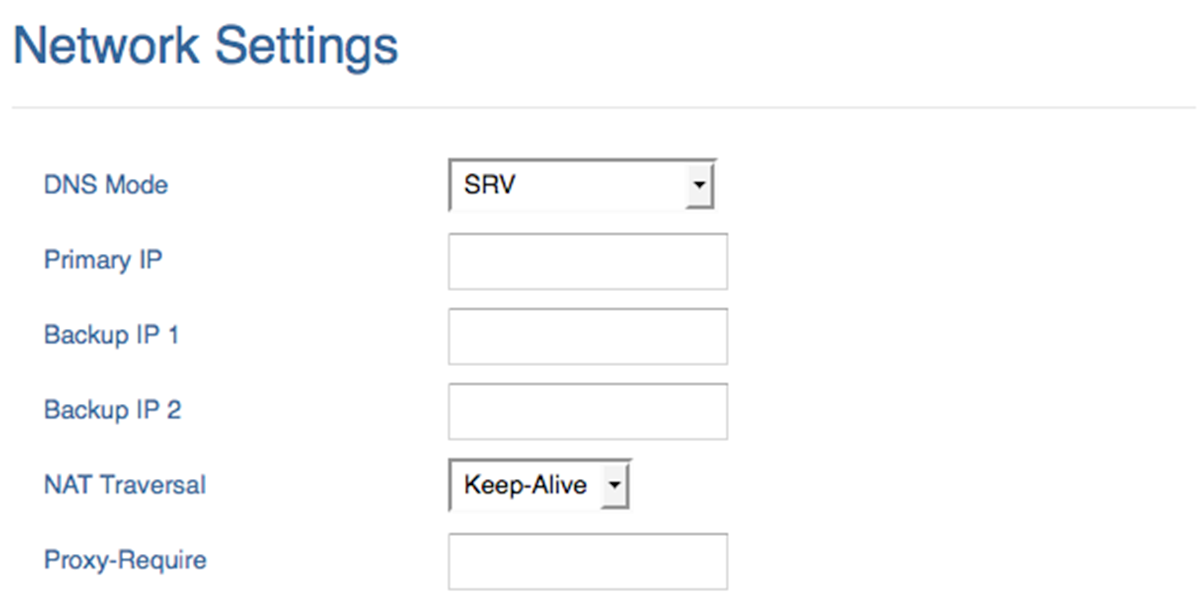

Next, click on Network Settings which is located on the side menu bar. On this page, please use the settings detailed in the screen captures below. After you have finished entering these settings, click on the Save and Apply button to apply/save your settings:


Setting	Value
DNS Mode	SRV
NAT Traversal	keep-alive

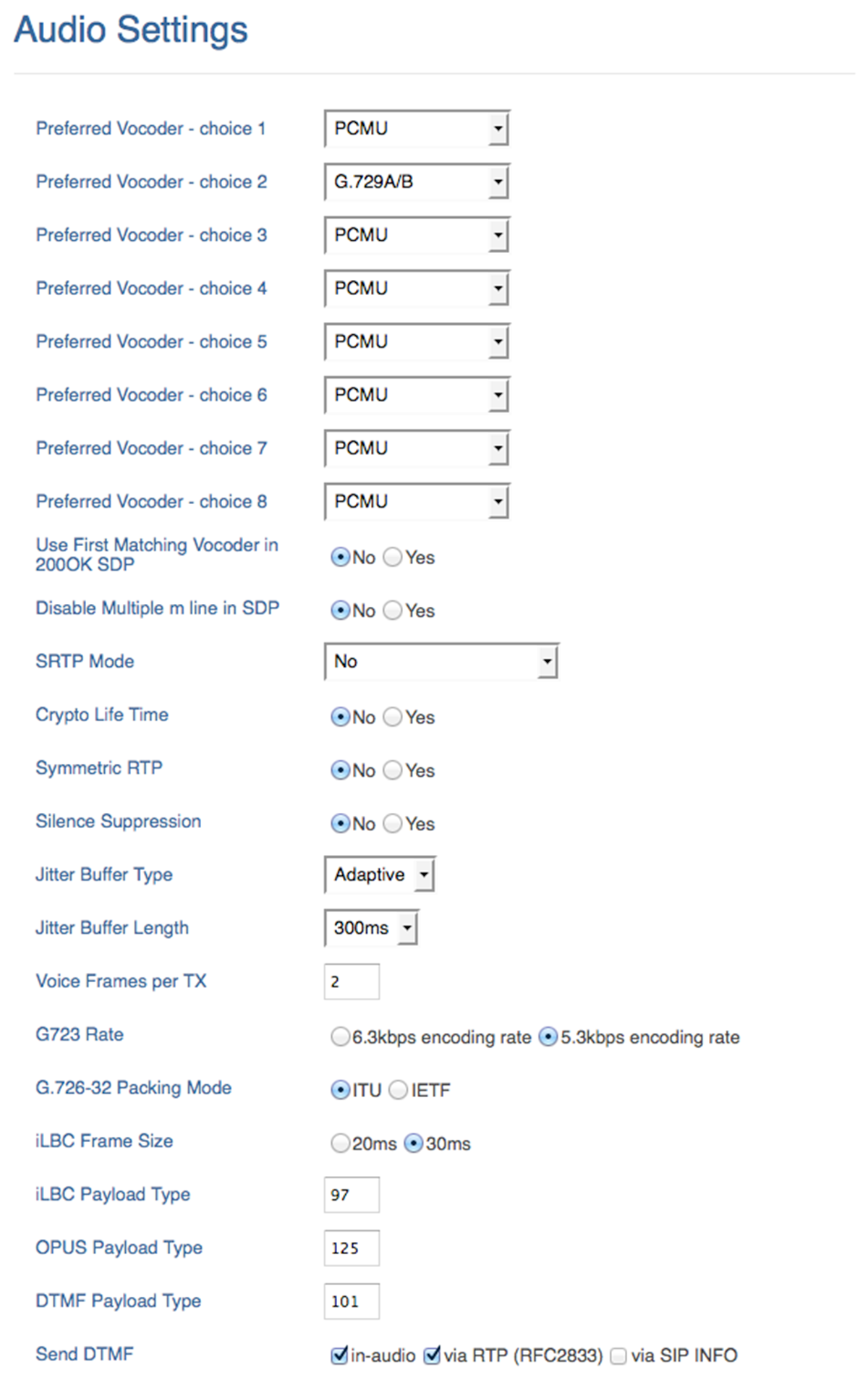

Next, click on Audio Settings which is located on the side menu bar. On this page, please use the settings detailed in the screen captures below. After you have finished entering these settings, click on the Save and Apply button to apply/save your settings:


Setting	Value
Preferred Vocoder	Choice 1 - PCMU Choice 2 - G729 Choice 3-8 - PCMU
Send DTMF	check/enable both in-audio and via RTP (RFC2833)

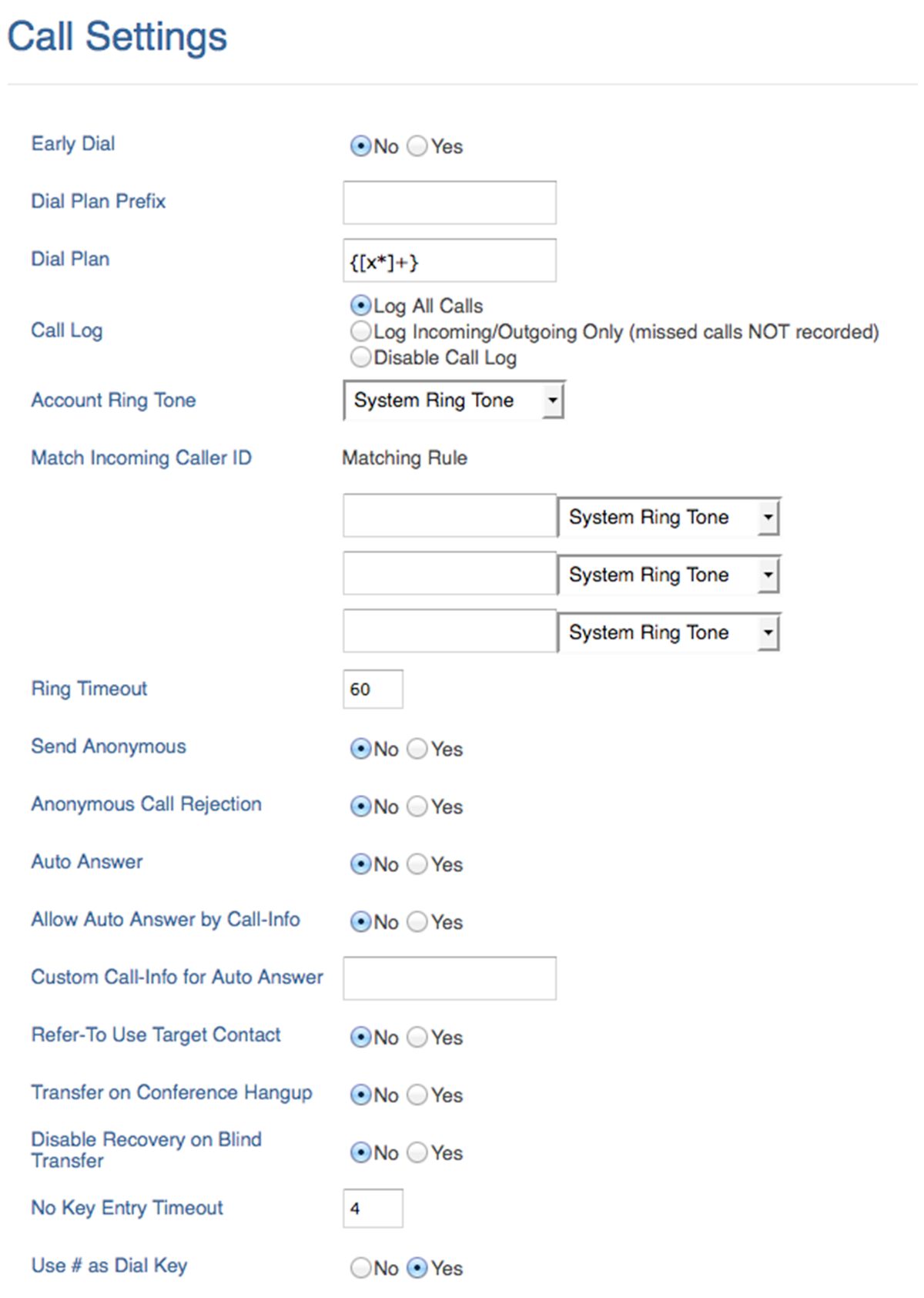

Next, click on Call Settings which is located on the side menu bar. On this page, please use the settings detailed in the screen captures below. After you have finished entering these settings, click on the Save and Apply button to apply/save your settings:


Setting	Value
Dialplan	{[x*]+}

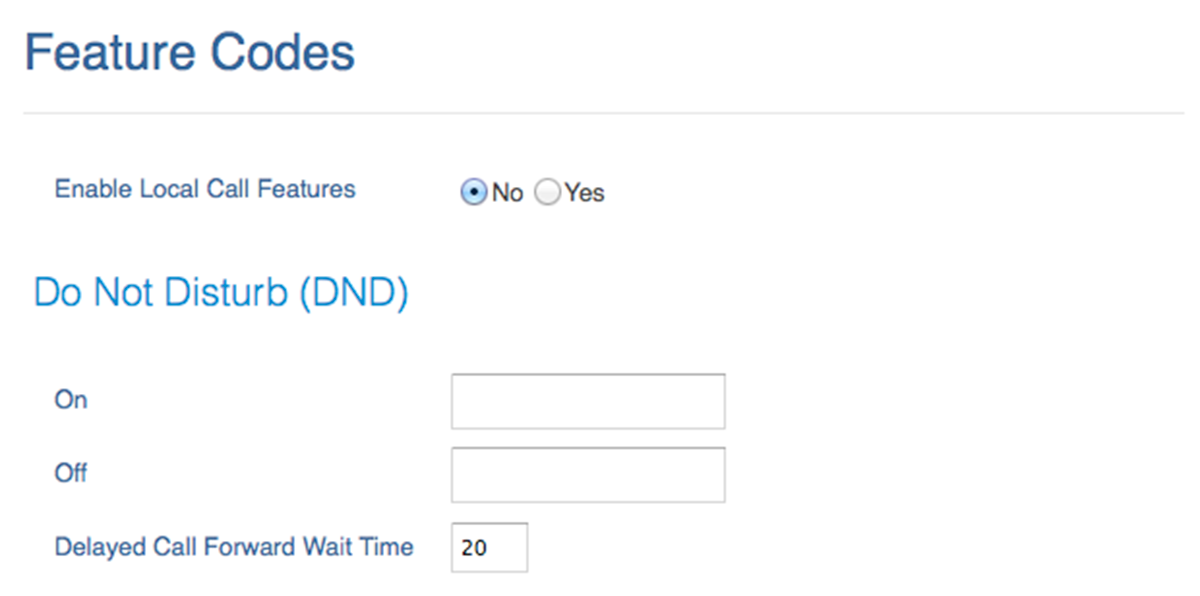

Lastly from the side menu bar, locate the Feature Codes configuration page. On this page, locate the option Enable Local Call Features and set this to No. After you have finished entering this setting, click on the Save and Apply button to apply/save your settings:

Step 3

Checking Registration Status

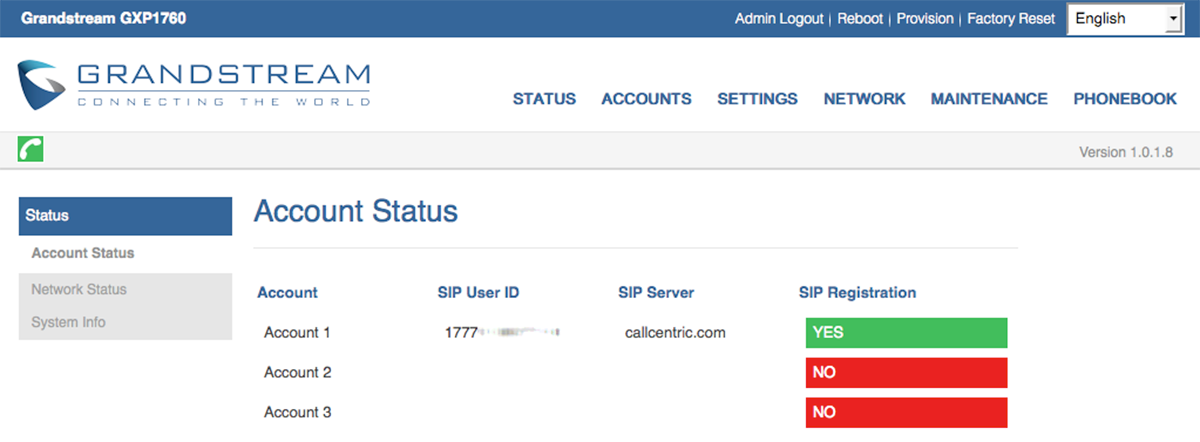

To ensure that your GXP1760 has successfully registered to our service click on the Status option on the top menu bar and locate the Account Status section. You should see that the account you just configured is now Registered.

Step 4

That's it! You can now make a phone call.

You can make a test call to 17771234567, or if you are signed up for one of Callcentric's rate plans you can place a call to a traditional landline or mobile phone by dialing either:
1 + the area code and number for calls to the US
Or
011 + the country code, area code, and number for calls worldwide (you may also use 00 instead of 011).

To test inbound calls from Callcentric to your GXP1760 installation, follow the directions listed in this FAQ.
