The Grandstream GRP2613 is a powerful, 3 line IP Phone that is easy to configure and cost effective. Notable features include support for up to 3 SIP accounts, speakerphone with echo cancellation, HD Audio, and dual gigabit ports with integrated PoE.

RESOURCES

Websites
Grandstream Homepage
Grandstream GRP2613 Product Page

Help/Support
GRP2613 Product Manual
Grandstream's Firmware Repository

Configuring the GRP2613

These instructions are based on Grandstream GRP2613 firmware version 1.0.1.7. If you are running a different firmware version, some menus/settings may be different. These instructions are also based on using the GRP2613 in its factory default configuration, which obtains a dynamic IP address automatically from your router using DHCP. For information on configuring your GRP2613 with a Static IP address, please refer to the GRP2613 user manual.

In this guide we will go through configuring the GRP2613 in order to register to the Callcentric servers, so that you will be able to place and receive calls using your Callcentric account. Before proceeding, please ensure that you have properly added the device to your network by connecting it to your router or gateway.

We recommend reading each step through in its entirety before performing the action(s) indicated within the step.

Note: Although this device supports many advanced features/options; this guide will only detail the specific settings which are required to establish basic connectivity between your GRP2613 and our service. If you need additional assistance with any specific issue, please let us know.

Step 1

Logging into your device

Login to the GRP2613's administrative interface by using the default username admin and the default password, which is located on the back of the device itself.

Step 2

Configuring your Callcentric account

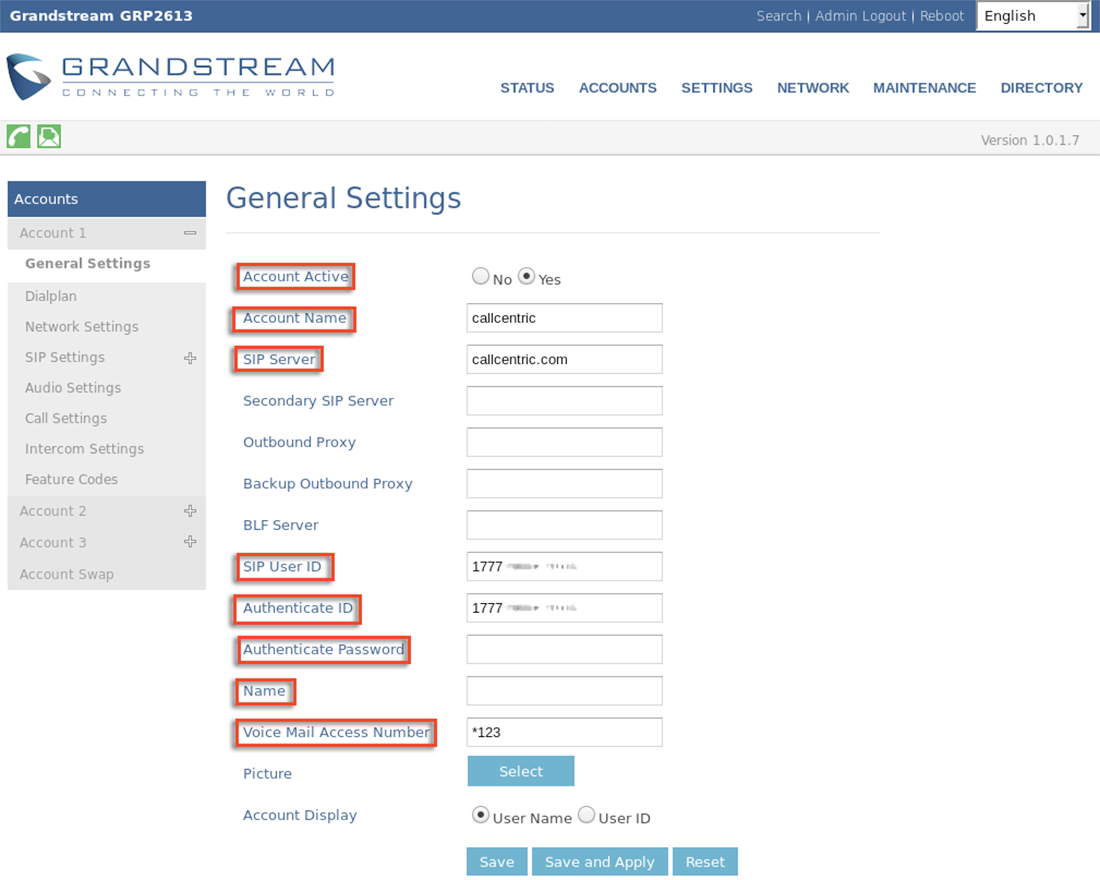

From the top menu bar, click on the Accounts option. After doing so, select Account 1 from the sub menu on the left-hand side of the screen. You should now be in the General Settings configuration page of your IP phone. Please configure your settings in-line with those detailed in the screenshot below. After doing so, click on the Save and Apply button (on the bottom of the page) to save/apply your settings:


Setting	Value
Account Active	checked/enabled
Account Name	callcentric
SIP Server	sip.callcentric.net
SIP User ID	This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to. For example: 17770001234101 would register to extension 101 on account 17770001234. You cannot register to your account using only the extension number.
SIP Authentication ID	This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to. For example: 17770001234101 would register to extension 101 on account 17770001234. You cannot register to your account using only the extension number.
SIP Authentication Password	Enter your extension SIP Password here. Your extension SIP password is the password you created for the extension you are trying to use. You may edit the SIP password you wish to use in by logging into your My Callcentric account and clicking on the Extension menu link and then modifying the appropriate extension.
Name	You may enter any value for this option.
Voicemail Access Number	*123

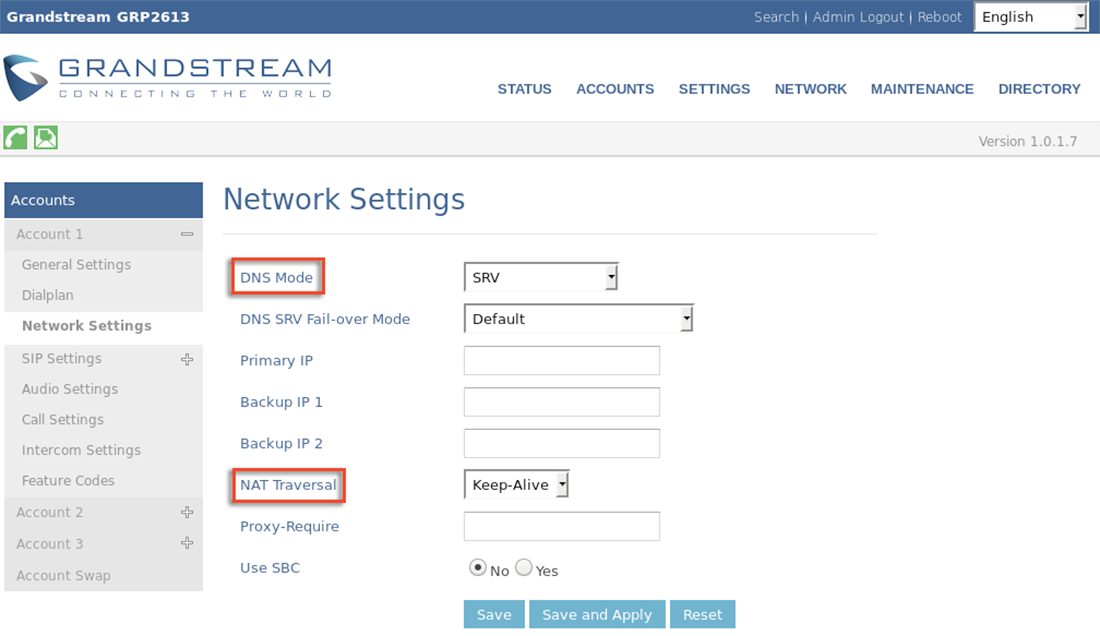

Next, select the Network Settings option on the side menu bar. Please configure your settings in-line with those detailed in the screenshot below. After doing so, click on the Save and Apply button (on the bottom of the page) to save/apply your settings:


Setting	Value
DNS Mode	SRV
NAT Traversal	Keep-Alive

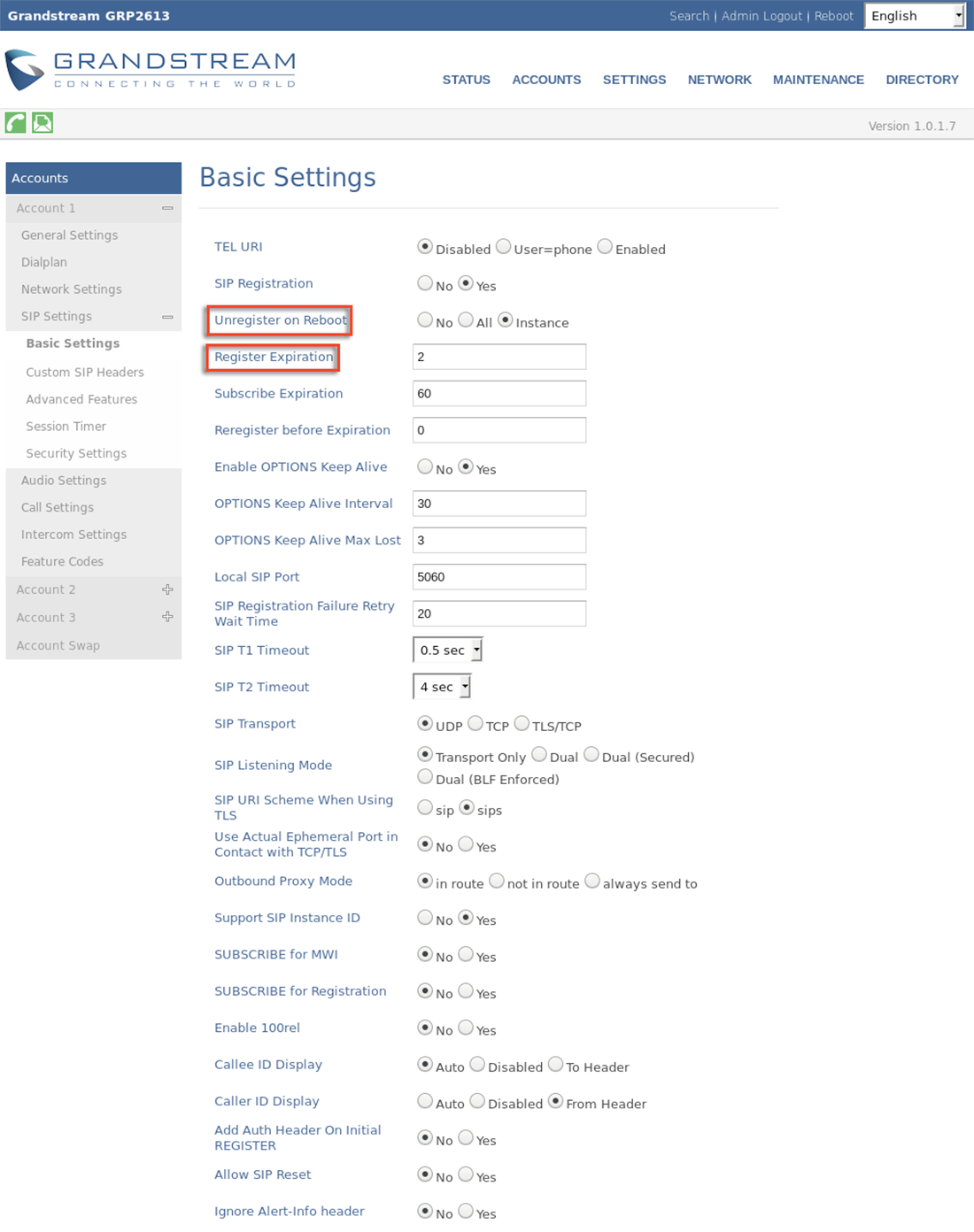

Next, select the SIP Settings option on the side menu bar, followed by Basic Settings. Please configure your settings in-line with those detailed in the screenshot below. After doing so, click on the Save and Apply button (on the bottom of the page) to save/apply your settings:


Setting	Value
Unregister on Reboot	Instance
Register Expiration	2

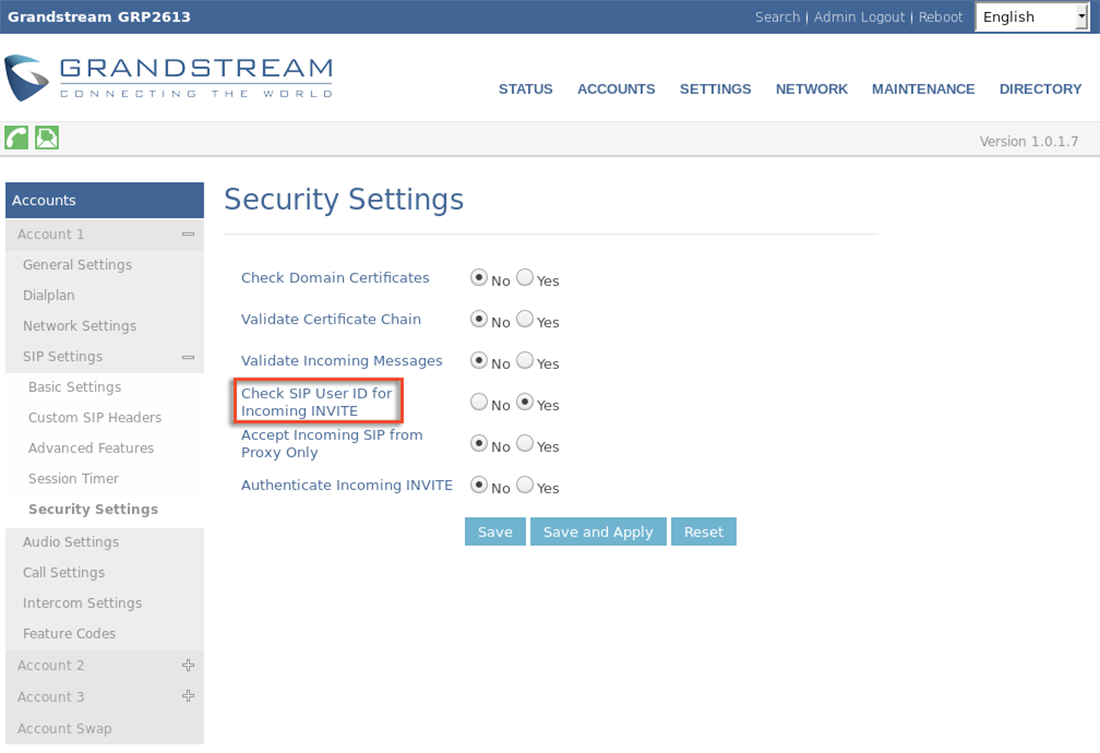

Next, select the SIP Settings option on the side menu bar, followed by Security Settings. Please configure your settings in-line with those detailed in the screenshot below. After doing so, click on the Save and Apply button (on the bottom of the page) to save/apply your settings:


Setting	Value
Check SIP User ID for Incoming INVITE	enabled/checked

Next, select the Codec Settings option on the side menu bar. Please configure your settings in-line with those detailed in the screenshot below. After doing so, click on the Save and Apply button (on the bottom of the page) to save/apply your settings:


Setting	Value
Preferred Vocoder	PCMU G729A/B
DTMF	In audio RFC2833

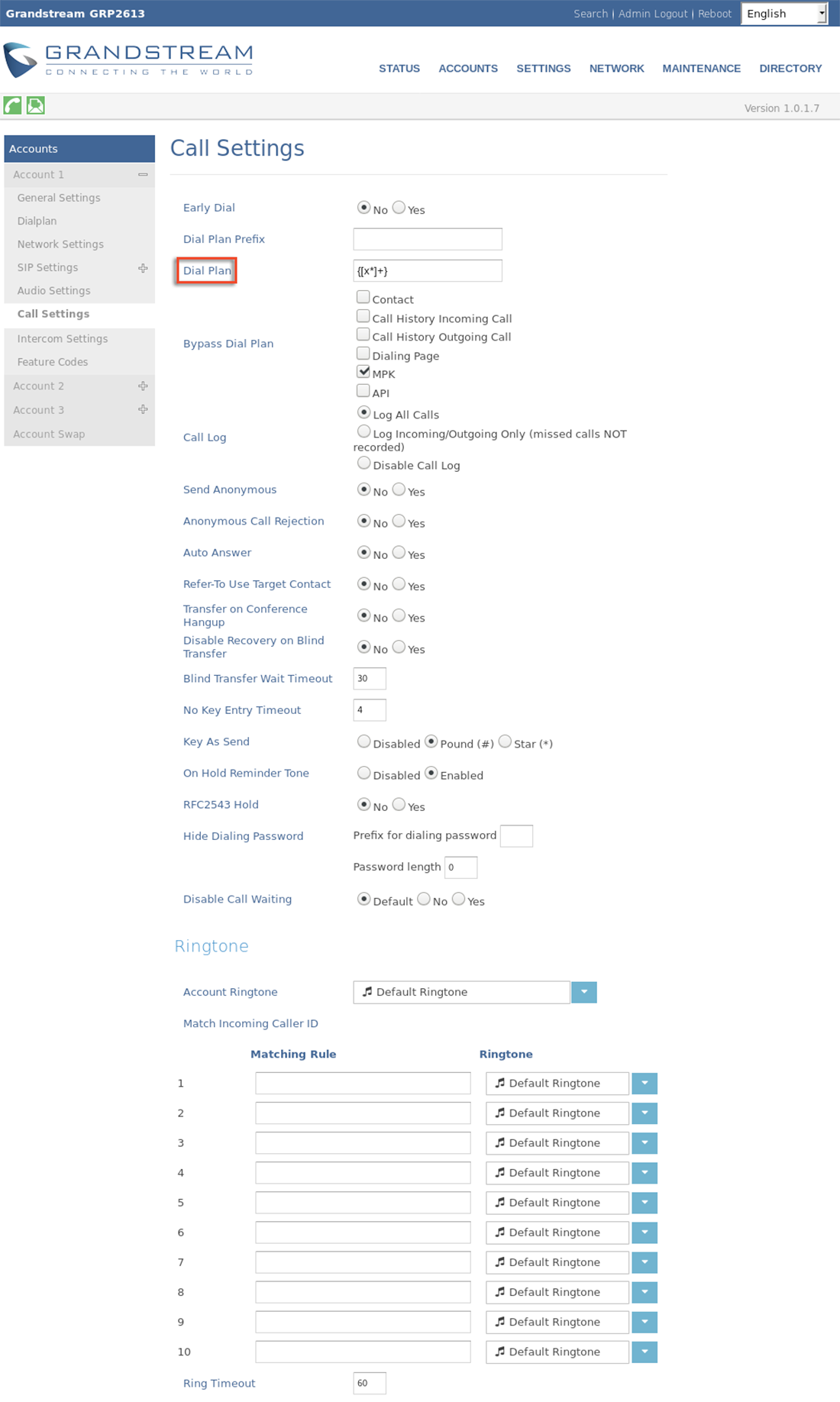

Next, select the Call Settings option on the side menu bar. Please configure your settings in-line with those detailed in the screenshot below. After doing so, click on the Save and Apply button (on the bottom of the page) to save/apply your settings:


Setting	Value
Dialplan	{[x*]+}

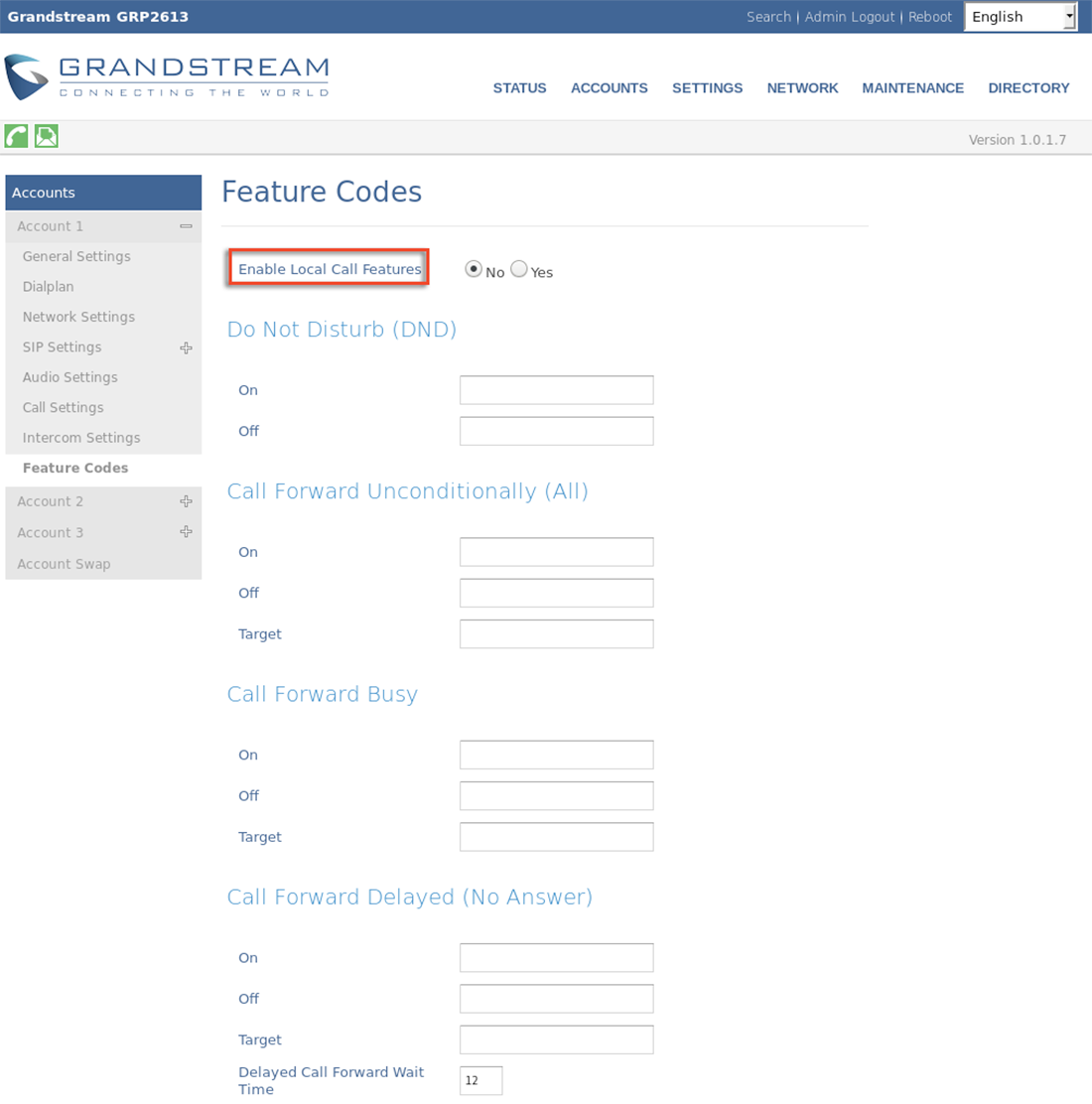

Finally, select the Feature Codes option on the side menu bar. Please configure your settings in-line with those detailed in the screenshot below. After doing so, click on the Save and Apply button (on the bottom of the page) to save/apply your settings:


Setting	Value
Enable Local Call Features	No

Step 3

Checking Registration Status

To ensure that your GRP2613 has successfully registered to our service, click on the Status option on the top menu bar and select the Account Status section. You should see that the account you just configured is now Registered.

Step 4

That's it! You can now make a phone call.

You can make a test call to 17771234567, or if you are signed up for one of Callcentric's rate plans you can place a call to a traditional landline or mobile phone by dialing either:
1 + the area code and number for calls to the US
Or
011 + the country code, area code, and number for calls worldwide (you may also use 00 instead of 011).
