| STEP 1 |
Connect your router with the supplied Ethernet network cable to the ethernet port found on the Gigaset's base station. Finally plug the supplied power cable into the base station.
Wait 60 seconds after plugging the base station's power adapter.
|
| STEP 2 |

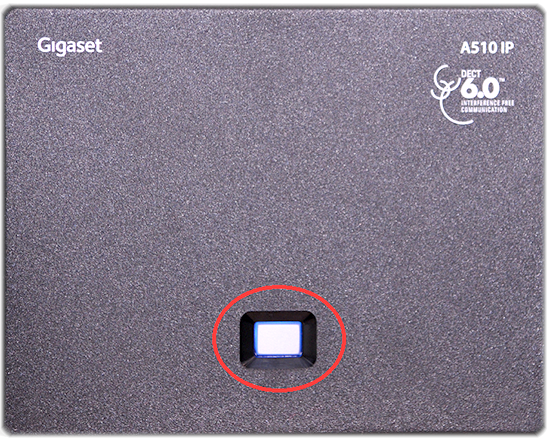

Press the Paging button located on the face of the base station, as indicated by the screen shot below:

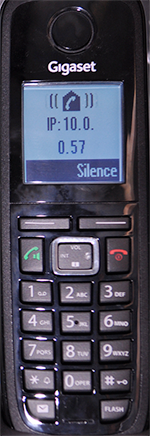

Once pressed, the IP address of the base station should be displayed on the handset, as indicated below:
Open a web browser on your computer such as Internet Explorer, or Firefox and enter the IP address you saw on the phone's interface (I.E. where you would normally enter www.yahoo.com).
|
| STEP 3 |
|

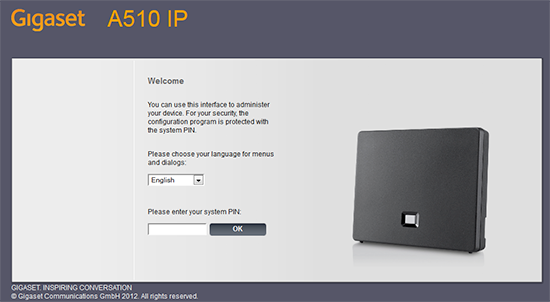

We will now login to your IP Phone. You should now see a page that looks like this:
Enter the system PIN for the A510 IP on the given field. The default system PIN for the A510 IP is 0000.
After entering the system PIN and clicking the OK button, you should see a screen that looks similar to the one below:
|
| STEP 4 |

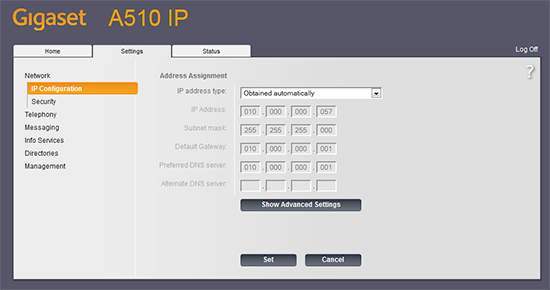

We will now check your IP configuration. On the Home page, click on the Settings tab on the top menu bar. Now under the Settings configuration page, click on the Telephony link on the side menu bar as shown screenshot below:
|
| STEP 5 |

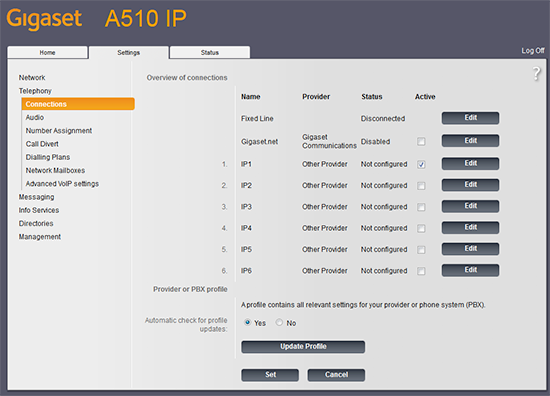

To configure your Callcentric account settings, please select the first available line, indicated by the Not configured status:
Once you have selected your desired line click on the Show Advanced Settings button, and use the following settings.
| |
| Setting | Value |
| Connection Name or Number: | Callcentric |
| Authentication name: | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Authentication password: | Enter your extension SIP Password here. Your extension SIP password is the password you created for the extension you are trying to use. You may edit the SIP password you wish to use in by logging into your My Callcentric account and clicking on the Extension menu link and then modifying the appropriate extension. |
| Username: | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Display name: | 1777MYCCID, where 1777MYCCID is the 1777 number assigned to you by Callcentric |
| Domain: | sip.callcentric.net |
| Proxy server address: | sip.callcentric.net |
| Proxy server port: | 5060 |
| Registration server: | sip.callcentric.net |
| Registration server port: | 5060 |
| Registration refresh time: | 60 |
| STUN enabled: | No |
| STUN server address: | |
| Outbound proxy mode: | Always |
| Outbound server address: | sip.callcentric.net |
| Outbound proxy port: | 5060 |
| Select Network Protocol: | UDP Only |
After configuring your settings click the Set button to save your changes. Your configuration should look similar to the one shown in the picture below:
|
| STEP 6 |

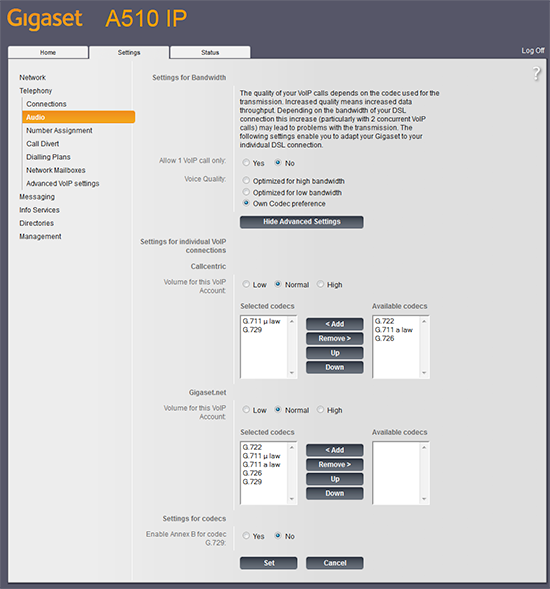

We want to make sure audio settings are configured properly. To do this click on Audio followed by the Show Advanced Settings button and ensure that the G.711u and G.729 codecs are the only codecs listed under the Selected Codecs option. Once done, click the Set button to save your changes. Your configuration should look similar to the one shown in the picture below:
|
| STEP 7 |

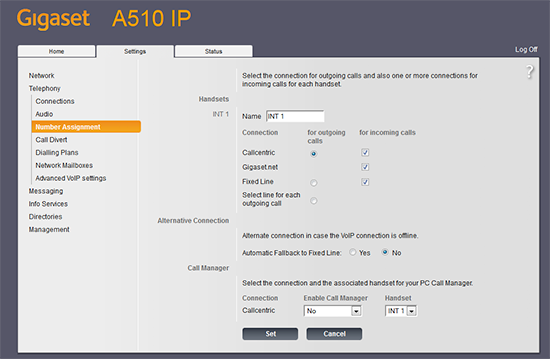

To receive calls properly you need to configure your Gigaset IP Phone. Click on Number Assignment link, and ensure both the radio button and the check box have been marked for the settings for outgoing calls and for incoming calls next to Callcentric, as shown below:
Once done, click the Set button to save your changes.
|
| STEP 8 |

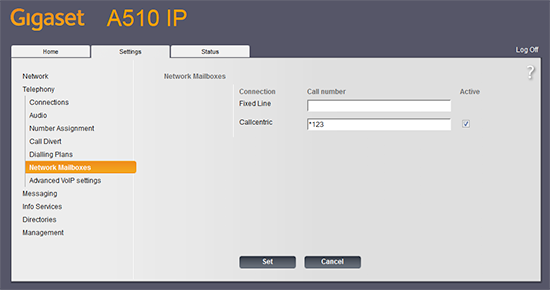

You may want to access voicemail from time to time. From the side menu, please visit the Network Mailboxes page. In field next to Callcentric enter *123. After doing so, please mark the checkbox underneath the Active option as shown below:
Once done, click the Set button to save your changes.
|
| STEP 9 |
That's it! You can now make a phone call. |
|
You can make a test call to 17771234567, or if you are signed up for one of Callcentric's rate plans you
can place a call to a traditional landline or mobile phone by dialing either:
1 + the area code and number for calls to the US
Or
011 + the country code, area code, and number for calls worldwide
(you may also use 00 instead of 011).
|
The Gigaset A510 and C610 IP phones are fitting solutions if you are looking for the flexibility of VoIP and the convenience of using a cordless handset. With DECT support these devices give you the ability to place upwards of 3 parallel calls, and the ability to register upwards of 6 SIP accounts, on the C610.
