| GENERAL INFORMATION |
 |
 CloudTC's Glass 1000 is part of a new trend in SIP and IP based communications. With the use of the Android OS customers now have the ability to use multiple SIP clients. The Glass 1000 combines all of this with an 8.9 touch screen and delivers a usable and feature rich solution for the sales professional or business executive.
|
|
| RESOURCES |
|
Websites:
cloudtc.com
CloudTC Glass 1000 product page
|
|
| Configuring CloudTC Glass 1000 |
|
The information for the Glass 1000 is based on Software version: 2.3.3 Build: 3775, VoIP: 1773.103929.
We recommend that you read each step through in its entirety before performing the action indicated in the step.
|
 | |
| STEP 1 |
Launching the Glass 1000 |
|
To configure your device please bootup your phone, if you haven't already. Once you are up and running click on the Applications menu item located in the bottom left and select Phone Status. You will be presented with information about the model number, software version, IP and line configuration. You may choose to use the built in configuration tool, which uses the same information as the web based configuration, or can simply use the web based configuration. Here we will use the web based configuration.
Login to your device using the IP shown and login using admin as the username and admin as the password, unless you have changed this.
|
| STEP 2 |
Configuring your Callcentric account |
|

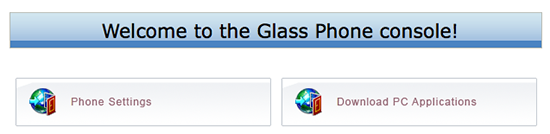

Once logged in click on the Phone Settings link.
We will now create a profile and enter the required credentials, such as your Callcentric number, password and SIP server. Click the Add Line button and configure the following:
| |
| Setting | Value |
| Line Description: | Your Name |
| SIP Username: | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Auth Username: | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Password: | Enter your extension SIP Password here. Your extension SIP password is the password you created for the extension you are trying to use. You may edit the SIP password you wish to use in by logging into your My Callcentric account and clicking on the Extension menu link and then modifying the appropriate extension. |
| SIP Server: | sip.callcentric.net |
| SIP Domain: | sip.callcentric.net |
| Voicemail Number | 1777MYCCID |
| SIP Registration Interval: | 120 |

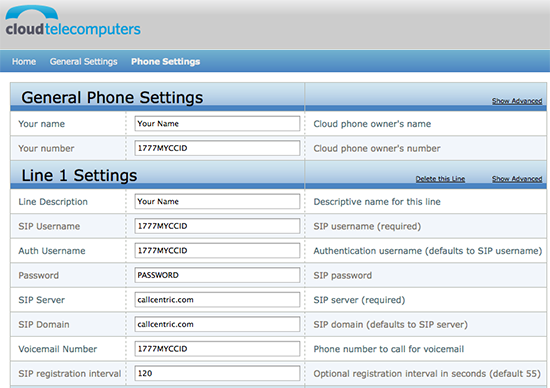

Your configuration should look similar to the one shown in the picture below:
|
| STEP 3 |
That's it! You can now make a phone call. |
|
You can make a test call to 17771234567, or if you are signed up for one of Callcentric's rate plans you
can place a call to a traditional landline or mobile phone by dialing either:
1 + the area code and number for calls to the US
Or
011 + the country code, area code, and number for calls worldwide
(you may also use 00 instead of 011).
To test inbound calls from Callcentric to your Glass 1000 installation, follow the directions listed in this FAQ.
|
|
|
