This guide will assist you with the general steps needed to configure the CounterPath Bria iPhone Edition softphone app. This guide is based on version 1.2.12 build 7099 of the Bria softphone and we cannot fully guarantee 100% compatibility with all future releases. This guide is only provided for those who wish to experiment, and potentially use, this software. Ideally you will want to use a wifi connection with these features, instead of a 3G connection.
NOTE: Please be aware that:
- If used over 3G/EDGE then depending on carrier and service plan used, you may be billed for your data usage.
- If using the PUSH feature in Bria then your username and password will be transmitted to CounterPath systems.
Help / Support:
Bria Support documentation
|Configuring Bria for iPhone|
|We recommend that you read each step through in its entirety before performing the action indicated in the step.|
||Launching the Bria iPhone Edition|
Open the Bria iPhone Edition softphone app by clicking on the Bria softphone icon with your iPhone user interface.
||Configuring your Callcentric account|

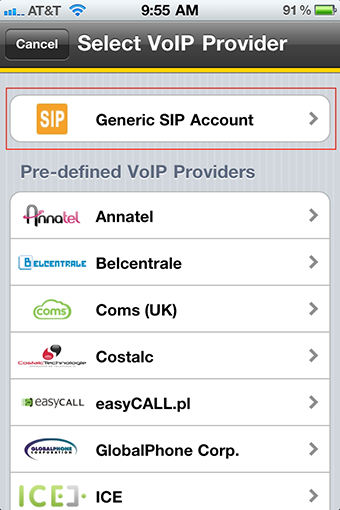

After starting the app you will see that 'no accounts' are configured within the softphone. Click on the Generic SIP Account button.

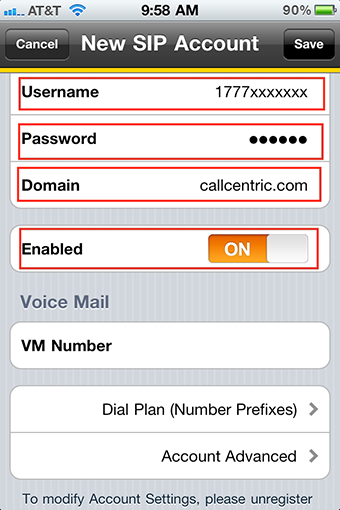

We will now create a profile and enter the required credentials, such as your Callcentric number, password and SIP server:
|Display Name:||Your Name|
|Username:||This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number.
|Password:||Enter your extension SIP Password here. Your extension SIP password is the password you created for the extension you are trying to use. You may edit the SIP password you wish to use in by logging into your My Callcentric account and clicking on the Extension menu link and then modifying the appropriate extension.|
|Domain:||callcentric.com (please ensure to use all lower case letters)|

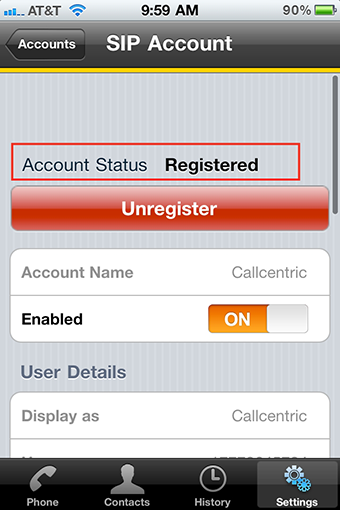

Enable account by clicking the slider from OFF to ON. You should then see that the account status is Registered.

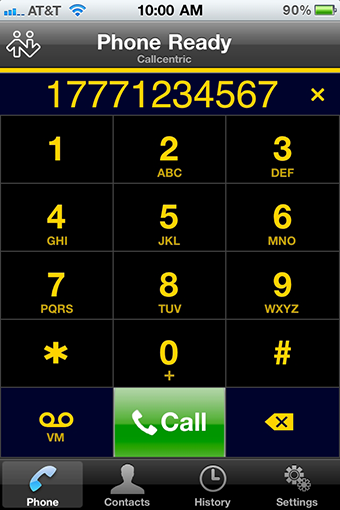

||That's it! You can now make a phone call.|
You can make a test call to 17771234567, or if you are signed up for one of Callcentric's rate plans you
can place a call to a traditional landline or mobile phone by dialing either:
1 + the area code and number for calls to the US
011 + the country code, area code, and number for calls worldwide
(you may also use 00 instead of 011).
