| STEP 1 |
Logging into your device |
|

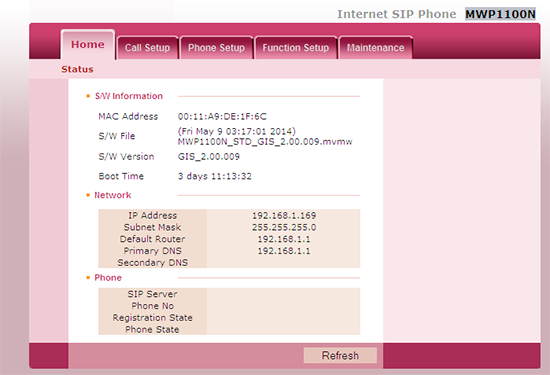

Log into the MWP1100's administrative interface and click on the Call Setup tab from the top menu bar. From there, click on the Account section of the interface.
|
| STEP 2 |
Configuring your Callcentric account |
|

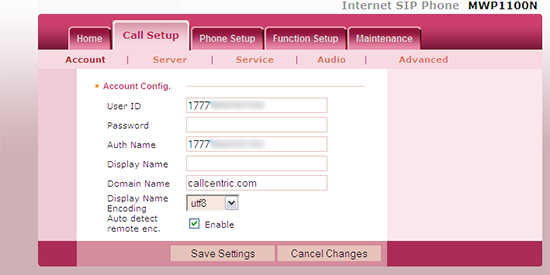

On the given fields, please use the following settings, as indicated by the screen captures below; please click on the Save Settings button once you have done so:
| Field | Setting |
| User ID | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Password | Enter your extension SIP Password here. Your extension SIP password is the password you created for the extension you are trying to use. You may edit the SIP password you wish to use in by logging into your My Callcentric account and clicking on the Extension menu link and then modifying the appropriate extension. |
| Auth Name | This is either the default extension 1777MYCCID OR 1777MYCCIDEXT, where 1777MYCCID is the 1777 number assigned to you by Callcentric and EXT is the three digit extension you are trying to register this UA to.
For example: 17770001234101 would register to extension 101 on account 17770001234.
You cannot register to your account using only the extension number. |
| Domain Name | sip.callcentric.net |
|
| STEP 3 |
Configuring the Server |
|

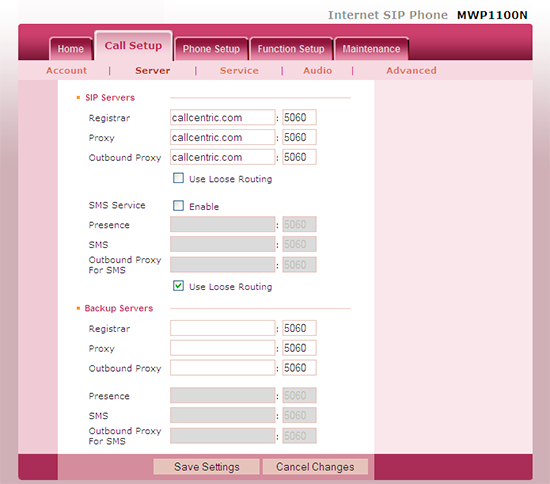

Next, click on the Server option on the sub menu. Please use the following settings, as indicated by the screen captures below. Once done please click on the Save Settings button.
| Field | Setting |
| Registrar | sip.callcentric.net:5060 |
| Proxy | sip.callcentric.net:5060 |
| Outbound Proxy | sip.callcentric.net:5060 |
|
| STEP 4 |
Configuring Codecs and DTMF |
|

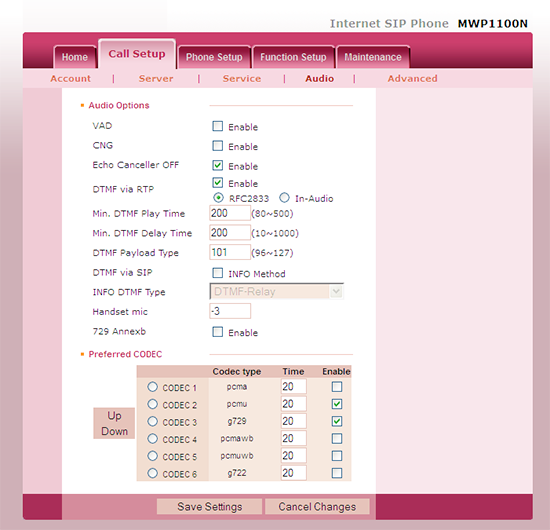

Now we will configure the codecs as well as the DTMF transport you will use. From the top menu bar, click on the Audio option on the sub menu bar. Locate the option DTMF via RTP and ensure that the option RFC2833 is select; next locate the section Preferred Codec and uncheck/disable all audio codecs except for pcmu and g729, as indicated by the screen capture below:
Once done click on the Save settings button.
|
| STEP 5 |
That's it! You can now make a phone call. |
|
You can make a test call to 17771234567, or if you are signed up for one of Callcentric's rate plans you
can place a call to a traditional landline or mobile phone by dialing either:
1 + the area code and number for calls to the US
Or
011 + the country code, area code, and number for calls worldwide
(you may also use 00 instead of 011).
|
The Apivio MWP1100/A is a Wifi based SIP device with a slim form factor that is aimed to be portable and convenient/easy to use. This device includes all of the features you would expect from your standard SIP phone plus an included web browser.
